Belt Drive-Vibration Damper for BMW 5 Series E39 525tds (1998)

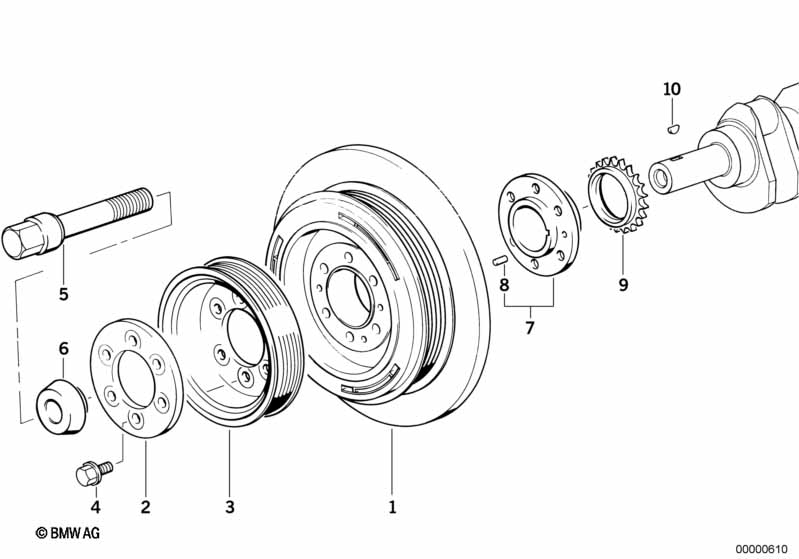

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11232246511 | $647.82 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 03 | Pulley | D=121MM | 1 | 64552244376 | $32.60 | Shop at ECS Tuning | ||||
| 04 | Collar screw | M8X31 | 6 | 11111736005 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M18X1,5X77 | 1 | 11232248269 | $7.50 | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 11231288660 | $8.10 | Shop at ECS Tuning | |||||
| 07 | Hub | 1 | 11211726449 | $61.18 | Shop at ECS Tuning | |||||
| 08 | Pin | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 09 | Sprocket | 1 | 11212243401 | $39.17 | ENDED | Shop at ECS Tuning | ||||
| 10 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
