Crankshaft Connecting Rod for BMW 5 Series E34 525i (1990)

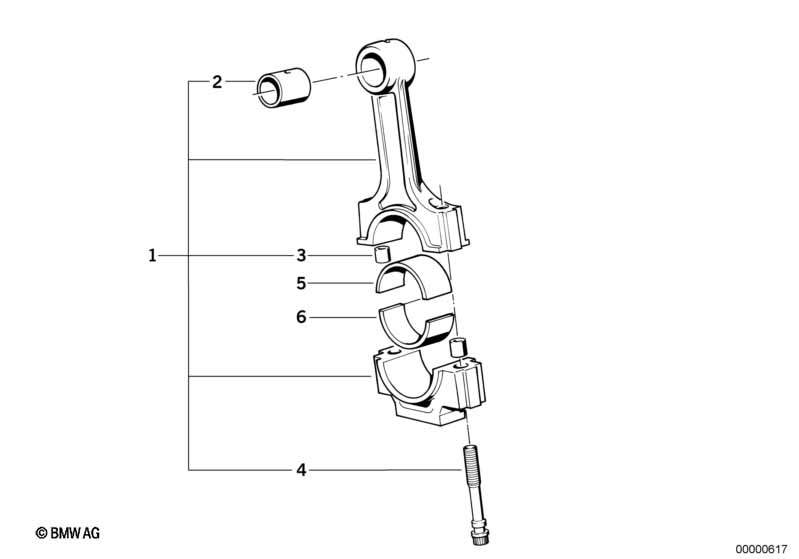

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connecting rod | L=135MM | 6 | 11241288386 | $209.32 | Shop at ECS Tuning | ||||
| 02 | Connecting rod bush | 6 | 11241278209 | $7.06 | Shop at ECS Tuning | |||||
| 03 | Dowel | 7,5X11,2 | X | 11241280833 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Connecting rod bolt | L=53MM | X | 11241713342 | $6.32 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 45,00MM(0) | 6 | 11241284850 | $15.98 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,75MM(+0,25) | 6 | 11241284852 | $21.31 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 44,50MM(+0,50) | 6 | 11241284854 | $21.31 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 45,00MM(0) | 6 | 11241284849 | $16.49 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, red | 44,75MM(+0,25) | 6 | 11241284851 | $13.27 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell, red | 44,50MM(+0,50) | 6 | 11241284853 | $13.27 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Crankshaft Connecting Rod?
- This technical diagram illustrates the Crankshaft Connecting Rod within the Engine group for the 5 Series E34 525i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Connecting rod (Part #11241288386).
- Which models use the hardware listed in this Crankshaft Connecting Rod?
- The hardware and components featured in the Crankshaft Connecting Rod are specific to the 5 Series E34 525i produced during 1990. These technical specifications ensure that parts like the Connecting rod (11241288386) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft Connecting Rod assembly?
- Each item in the Crankshaft Connecting Rod corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Connecting rod by locating its position on the schematic, which then links to the official BMW part number 11241288386 for the Engine section.
