Engine Suspension / Damper for BMW 5 Series E34 525td (1995)

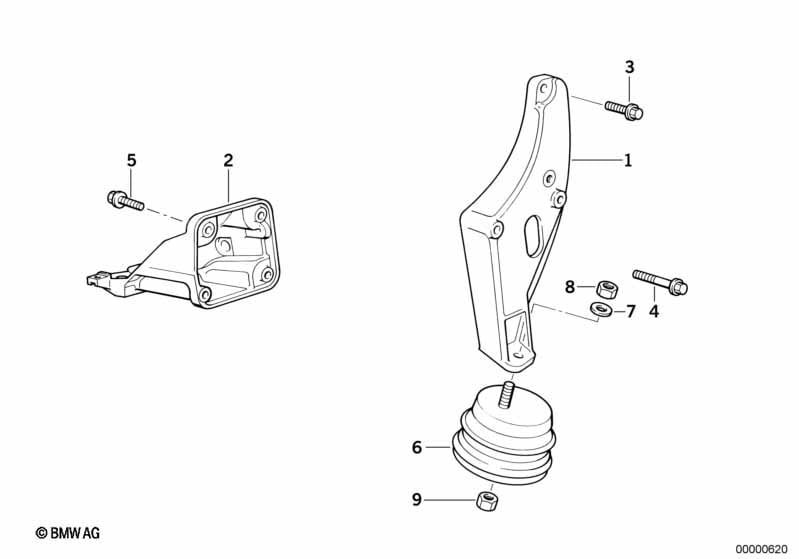

This Engine Suspension / Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket left | 1 | 11811139424 | Shop at ECS Tuning | ||||||
| 02 | Supporting bracket right | 1 | 11811141866 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X26-10.9-ZNS3 | 1 | 07119904092 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X55-U1 | 2 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X26-10.9-ZNS3 | 4 | 07119904092 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 11811139606 | $76.68 | Shop at ECS Tuning | |||||
| 07 | Washer | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M10 | 2 | 32101133077 | $2.50 | ENDED | Shop at ECS Tuning |
