Fan belt drive for BMW 3 Series E30 318i (1983)

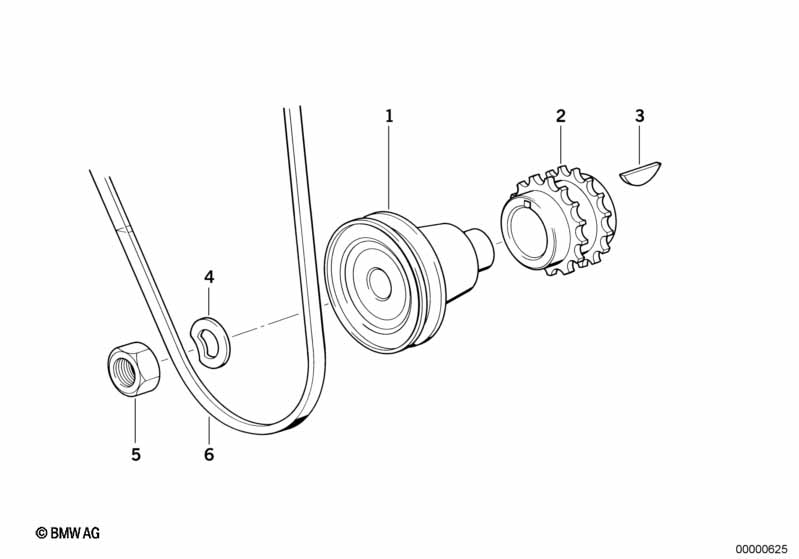

This Fan belt drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulley | 3X RIEMENRILLEN | 1 | 11211270193 | $119.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Power steering and Air conditioning |
=Yes =Yes |
|||||||||
| 01 | Pulley | 1 | 11211286336 | $143.70 | Shop at ECS Tuning | |||||
| 02 | Sprocket | 1 | 11211265010 | $87.34 | Shop at ECS Tuning | |||||
| 03 | Woodruff key | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B20 | 1 | 07119932183 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut | M20X1,5 | 1 | 07119921656 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 06 | Fan belt | 9,5X875 | 1 | 09/1983 | 12311268675 | $15.72 | ENDED | Shop at ECS Tuning | ||
| 06 | Fan belt | 9,5X865 SRC | 1 | 11231709638 | $7.71 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Fan belt drive?
- This technical diagram illustrates the Fan belt drive within the Engine group for the 3 Series E30 318i produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Pulley (Part #11211270193).
- Which models use the hardware listed in this Fan belt drive?
- The hardware and components featured in the Fan belt drive are specific to the 3 Series E30 318i produced during 1983. These technical specifications ensure that parts like the Pulley (11211270193) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fan belt drive assembly?
- Each item in the Fan belt drive corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Pulley by locating its position on the schematic, which then links to the official BMW part number 11211270193 for the Engine section.
