Timing and valve train-tooth belt for BMW 3 Series E30 320i (1988)

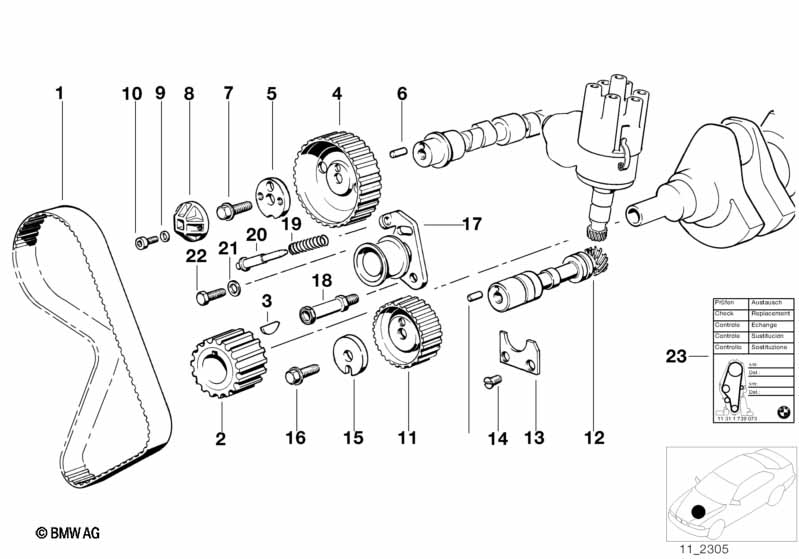

This Timing and valve train-tooth belt technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tooth belt semicircular profile | Z=127 | 1 | 11311711081 | Shop at ECS Tuning | |||||
| 02 | Gear wheel,tooth belt | 1 | 11211284940 | $84.25 | Shop at ECS Tuning | |||||
| 03 | Woodruff key | 5X6.5 | 2 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Gear wheel,tooth belt | SINTER | 1 | 12/1986 | 11311714988 | $54.67 | ENDED | Shop at ECS Tuning | ||
| 05 | Washer | M. 4 LÖCHER | 1 | 11311264692 | $6.90 | Shop at ECS Tuning | ||||
| 05 | Washer | O. LOCH | 1 | 11311717180 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Dowel pin | 8 M6X14 | 2 | 07119942079 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Lock bolt | M10X28 | 1 | 11311266796 | $1.29 | Shop at ECS Tuning | ||||
| 07 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 11 | Gear wheel,tooth belt | SINTER | 1 | 11311717398 | $32.80 | Shop at ECS Tuning | ||||
| 12 | Intermediate shaft | B | 1 | 11351716095 | $145.96 | Shop at ECS Tuning | ||||
| 13 | Guide | 1 | 11351280551 | $7.88 | Shop at ECS Tuning | |||||
| 14 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 15 | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| 16 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 17 | Adjusting pulley | 1 | 11311711154 | Shop at ECS Tuning | ||||||
| 18 | Screw | 1 | 11311272433 | $5.13 | Shop at ECS Tuning | |||||
| 19 | Compression spring | 1 | 11311267746 | $1.09 | Shop at ECS Tuning | |||||
| 20 | Pin | 1 | 11311280960 | $4.32 | Shop at ECS Tuning | |||||
| 21 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 23 | Label, Tooth Belt Change | 1 | 11311739073 | $0.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
