Oil pan/oil level indicator for BMW 5 Series E34 525td (1996)

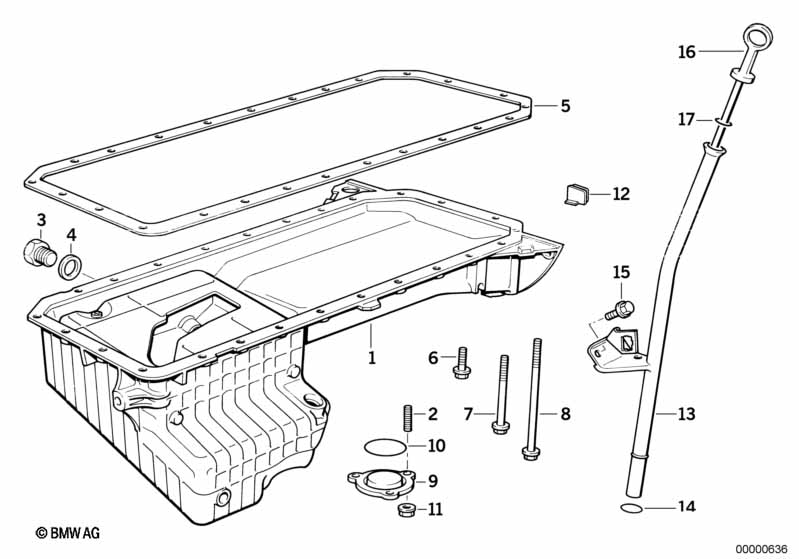

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11132246731 | Shop at ECS Tuning | ||||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11139066503 | $45.62 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X20 | X | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X60-Z3 | 2 | 07119913001 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X100-Z1 | 2 | 11122245529 | Shop at ECS Tuning | |||||
| 09 | Cover lid | 1 | 11131726357 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 11 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 11131717720 | $5.36 | Shop at ECS Tuning | |||||
| 13 | Guide tube | L=523MM | 1 | 11432243604 | Shop at ECS Tuning | |||||
| 14 | O-ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6X10-Z1 | 2 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Dipstick | 1 | 11432246521 | Shop at ECS Tuning | ||||||
| 17 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 5 Series E34 525td produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11132246731).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 5 Series E34 525td produced during 1996. These technical specifications ensure that parts like the Oil Pan (11132246731) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11132246731 for the Engine section.
