Cylinder Head for BMW 3 Series E46 318i (1998)

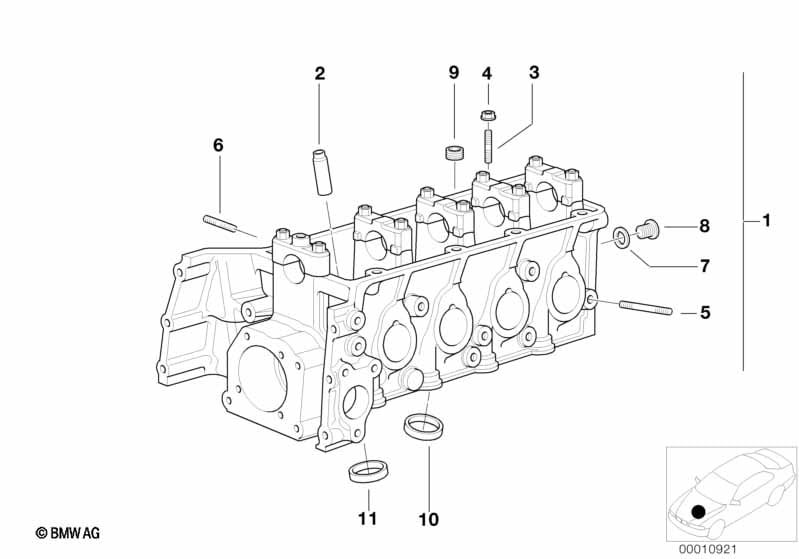

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121716621 | $1925.29 | Shop at ECS Tuning | |||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 02 | Valve Guide | 12,7MM(+0,2) | 8 | 11121709860 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M7X55 | X | 07129908122 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Flange nut | M7 | X | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M7X55 | 5 | 07129908122 | $0.29 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M8X45 | 8 | 07129908136 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Screw plug | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 09 | Screw plug | M18X1,5 | 1 | 07119919017 | Shop at ECS Tuning | |||||
| 11 | Valve Seat Ring Exhaust | 38,05MM(+0,4) | 4 | 11121715253 | $16.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121716621).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Cylinder Head (11121716621) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121716621 for the Engine section.
