Intake manifold-supercharg.air duct for BMW 3 Series E36 325td (1998)

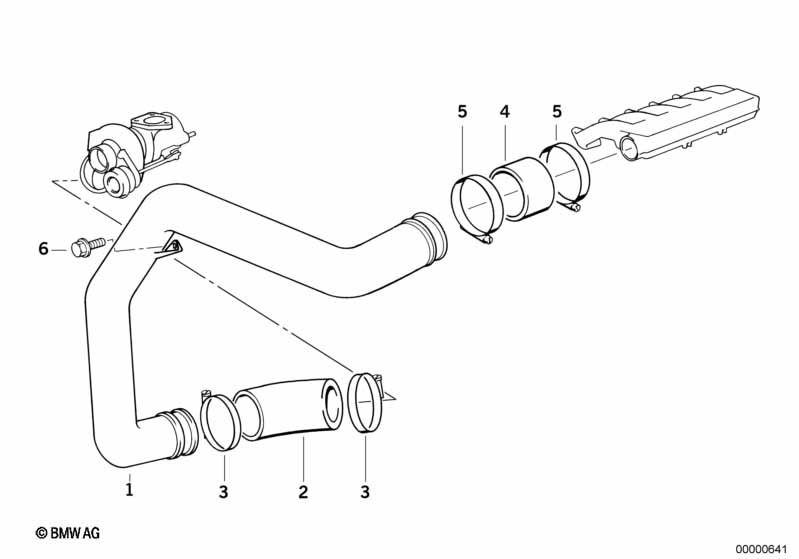

This Intake manifold-supercharg.air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Catalytic converter |
=No |
|||||||||
| 01 | Pressure pipe without exhaust gas valve | 1 | 11612244426 | $71.42 | +core | Shop at ECS Tuning | ||||
| 02 | Hose | 1 | 11612244425 | +core | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L=53-60MM | 2 | 07129952123 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Pressure hose assy | 1 | 11612243635 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | L59-66 | 2 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
