timing gear timing chain top for BMW 7 Series E38 740i (1996)

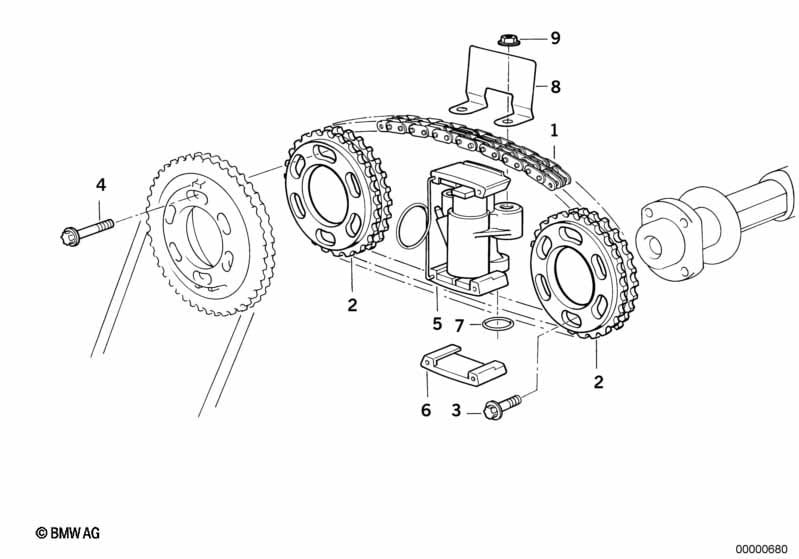

This timing gear timing chain top technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 2 | 11317598262 | Shop at ECS Tuning | ||||||
| 02 | Sprocket | Z=26 | 4 | 11311731512 | $94.30 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M6X15 | X | 11311731951 | $0.43 | Shop at ECS Tuning | ||||
| 04 | Torx bolt | M6X25 | X | 11311731952 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Chain tensioner | ZYL.1-4 | 1 | 11311725441 | $153.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Chain tensioner | ZYL.5-8 | 1 | 11311725442 | $153.27 | Shop at ECS Tuning | ||||
| 06 | Sliding piece | 4 | 11311736408 | $10.63 | Shop at ECS Tuning | |||||
| 07 | O-ring | 7,1X1,8 | 2 | 07119906361 | $0.46 | Shop at ECS Tuning | ||||
| 08 | Guide shield | ZYL.1-4 | 1 | 11311747770 | $2.14 | Shop at ECS Tuning | ||||
| 09 | Flange nut | M7 | 4 | 11617573839 | $0.33 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
