Cooling System Water Hoses for BMW 5 Series E34 540i (1995)

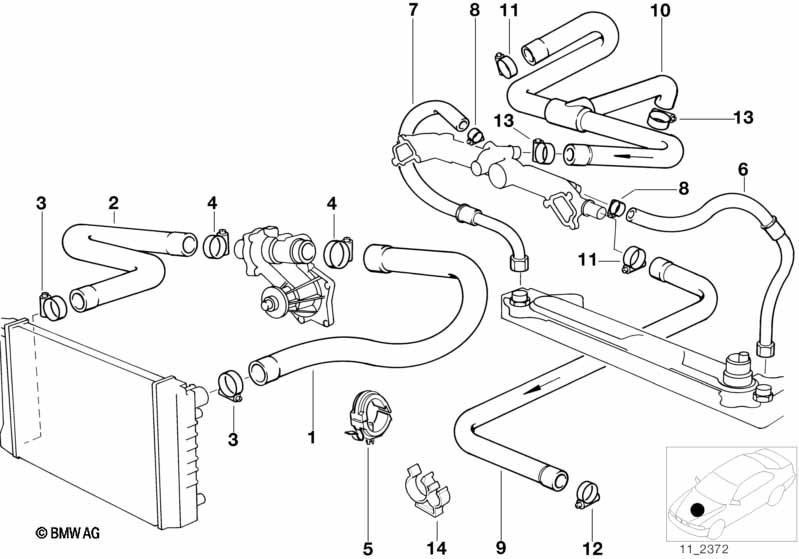

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 03/1995 | 11531741405 | $30.20 | Shop at ECS Tuning | ||||
| 02 | Water hose | 1 | 11531741407 | $26.42 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Water hose | 1 | 06/1994 | 11531741418 | $26.42 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L42-52 | 2 | 11531708296 | $2.60 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L42-52 | 2 | 11531708296 | $2.60 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| 09 | Hose f engine inlet and water valve | 1 | 64211390934 | $25.96 | Shop at ECS Tuning | |||||
| 10 | Hose f radiator and engine return | 1 | 64218390710 | $62.57 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 10 | Return hose | 1 | 03/1994 | 64218367932 | $90.00 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 11531742291 | $7.11 | Shop at ECS Tuning | |||||
