Cylinder head cover for BMW 7 Series E38 750iLP (2001)

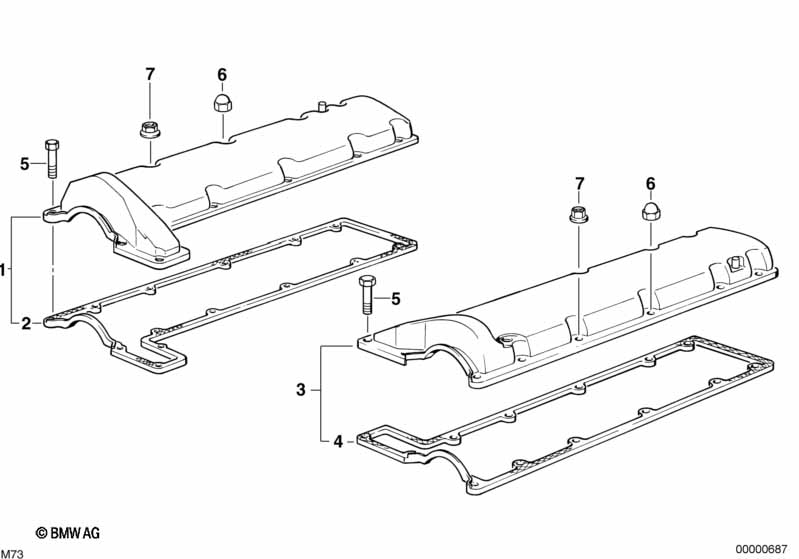

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 1-6 | ||||||||||
| 01 | Rocker box cover right | 1 | 11121747259 | $380.13 | +core | Shop at ECS Tuning | ||||
| 02 | Gasket right | 1 | 11121725002 | $42.58 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CYLINDER 7-12 | ||||||||||
| 03 | Rocker box cover left | 1 | 11121747261 | $380.13 | +core | Shop at ECS Tuning | ||||
| 04 | Gasket left | 1 | 11121725003 | $42.58 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X20 | 8 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Cap nut | M6 | 16 | 11617549043 | $3.23 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750iLP Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 7 Series E38 750iLP produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Rocker box cover right (Part #11121747259).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 7 Series E38 750iLP produced during 2001. These technical specifications ensure that parts like the Rocker box cover right (11121747259) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 7 Series E38 750iLP, you can identify the Rocker box cover right by locating its position on the schematic, which then links to the official BMW part number 11121747259 for the Engine section.
