Lubrication system-Oil filter for BMW 6 Series E24 635CSi (1989)

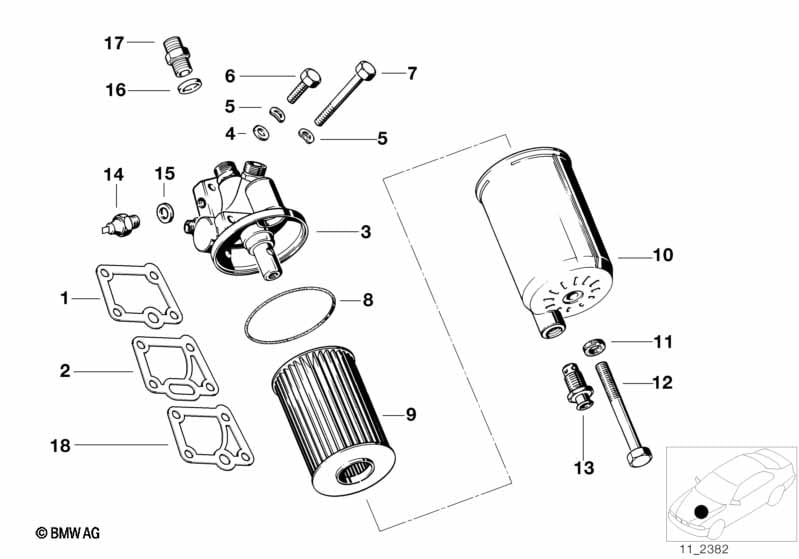

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 12/1983 | 11421730264 | $2.47 | Shop at ECS Tuning | ||||
| 01 | Gasket Asbestos Free | 1 | 12/1983 | 11421730264 | $2.47 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 12/1983 | 11421722688 | $2.42 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 12/1983 | 11421722688 | $2.42 | Shop at ECS Tuning | ||||
| 03 | Oil filter head | 1 | 10/1987 | 11421716584 | $122.07 | ENDED | Shop at ECS Tuning | |||
| 03 | Oil filter head | 1 | 10/1987 | 11421716584 | $122.07 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Lubrication system-Oil filter?
- This technical diagram illustrates the Lubrication system-Oil filter within the Engine group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #11421730264).
- Which models use the hardware listed in this Lubrication system-Oil filter?
- The hardware and components featured in the Lubrication system-Oil filter are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Gasket Asbestos Free (11421730264) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system-Oil filter assembly?
- Each item in the Lubrication system-Oil filter corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 11421730264 for the Engine section.
