Engine block for BMW 3 Series E36 325i (1993)

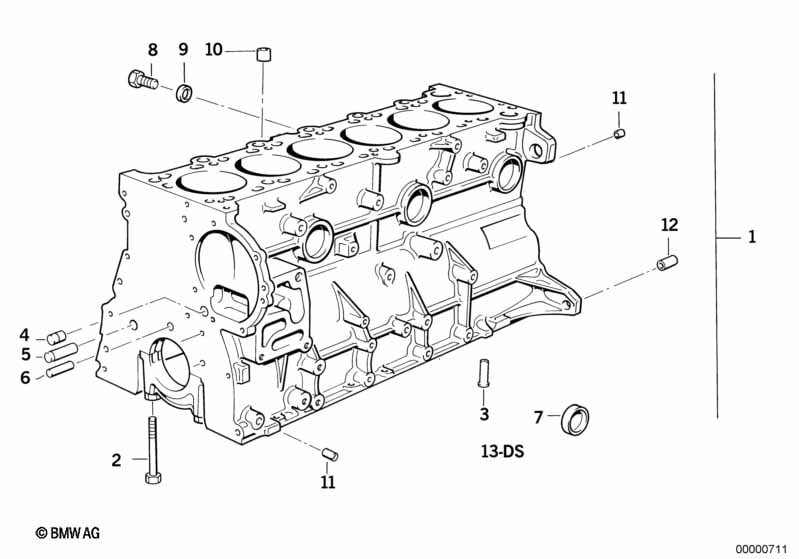

This Engine block technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | 1 | 11111748940 | $3507.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X75 | X | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 03 | Oil Spraying Nozzle | 6 | 11421748199 | $14.97 | Shop at ECS Tuning | |||||
| 04 | Plug | D=12,0MM | 2 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Bolt | 1 | 09/1994 | 11111722324 | $5.10 | Shop at ECS Tuning | ||||
| 06 | Oil Spraying Nozzle | 1 | 09/1994 | 11111720708 | $15.22 | Shop at ECS Tuning | ||||
| 07 | Cover lid | D=45MM | 7 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 08 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Dowel | D=13,5MM | 2 | 11121726243 | $1.62 | Shop at ECS Tuning | ||||
| 11 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 13 | Gasket Set Engine Block Asbesto Free | 1 | 11119064460 | $135.15 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i Engine block?
- This technical diagram illustrates the Engine block within the Engine group for the 3 Series E36 325i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Engine block with piston (Part #11111748940).
- Which models use the hardware listed in this Engine block?
- The hardware and components featured in the Engine block are specific to the 3 Series E36 325i produced during 1993. These technical specifications ensure that parts like the Engine block with piston (11111748940) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine block assembly?
- Each item in the Engine block corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Engine block with piston by locating its position on the schematic, which then links to the official BMW part number 11111748940 for the Engine section.
