Flywheel / Twin Mass Flywheel for BMW 8 Series E31 850Ci (1991)

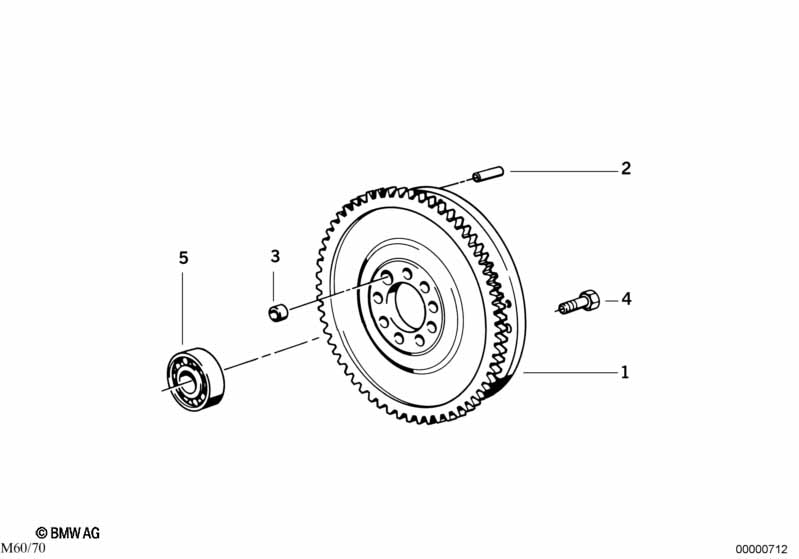

This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flywheel | 1 | 11221736395 | $669.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dowel pin | 10X23 | 3 | 11221709069 | $5.83 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Collar screw | M12X1,5X25 | 9 | 11221717841 | $2.37 | Shop at ECS Tuning | ||||
| 05 | Grooved ball bearing | 15X32X10 | 1 | 11211720310 | $22.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel (Part #11221736395).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Flywheel (11221736395) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Flywheel by locating its position on the schematic, which then links to the official BMW part number 11221736395 for the Engine section.
