Crankcase-Ventilation for BMW 3 Series E36 320i

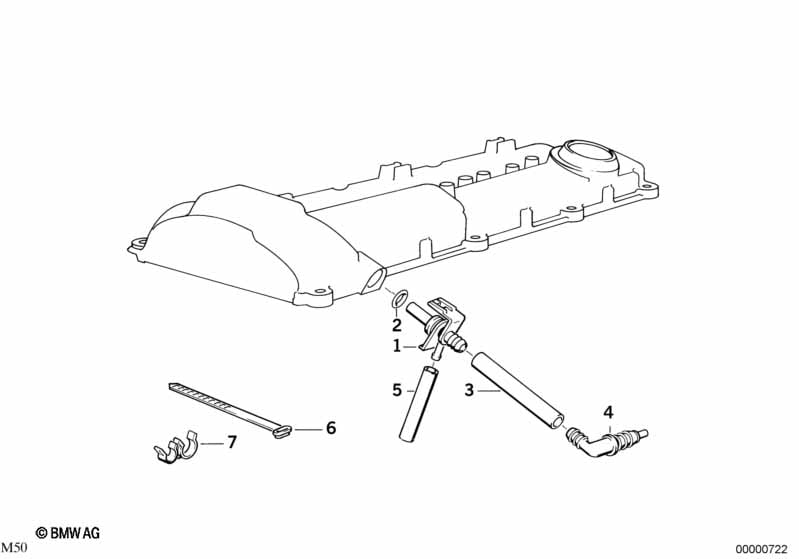

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | 1 | 11151703710 | $5.53 | Shop at ECS Tuning | |||||
| 02 | O-ring | 18,5X3,3 | 1 | 11151730724 | $3.67 | ENDED | Shop at ECS Tuning | |||
| 03 | Hose | 1 | 11151730507 | $8.84 | Shop at ECS Tuning | |||||
| 04 | Reducer | 1 | 11151730407 | $5.27 | Shop at ECS Tuning | |||||
| 05 | Hose | 1 | 11151726828 | $3.30 | Shop at ECS Tuning | |||||
| 06 | Cable tie | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 1 | 11151730342 | $0.19 | Shop at ECS Tuning |
