What assembly is shown in the BMW 3 Series E36 320iTiming - Timing Chain Lower P?

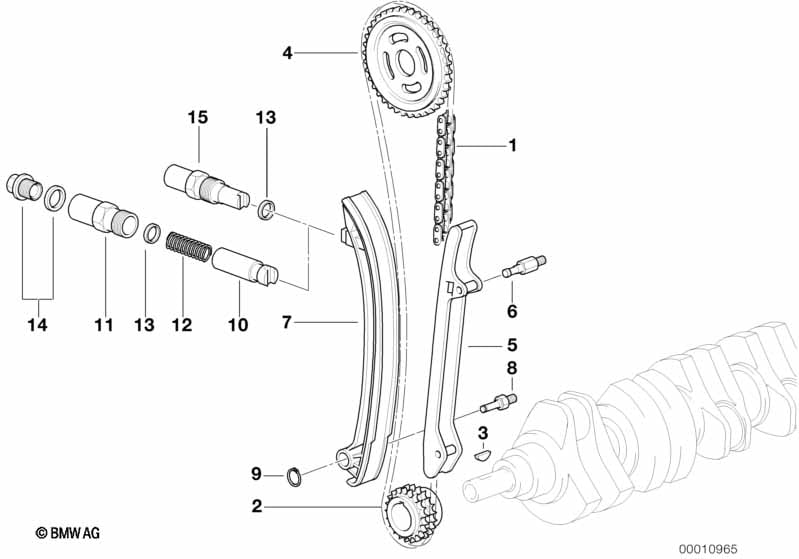

This technical diagram illustrates the Timing - Timing Chain Lower P within the Engine group for the 3 Series E36 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Timing chain (Part #11311432176).

Which models use the hardware listed in this Timing - Timing Chain Lower P?

The hardware and components featured in the Timing - Timing Chain Lower P are specific to the 3 Series E36 320i produced during 1992. These technical specifications ensure that parts like the Timing chain (11311432176) are correctly matched to the vehicle's structural and mechanical requirements.

How do I find specific parts within the Timing - Timing Chain Lower P assembly?

Each item in the Timing - Timing Chain Lower P corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Timing chain by locating its position on the schematic, which then links to the official BMW part number 11311432176 for the Engine section.

Timing - Timing Chain Lower P for BMW 3 Series E36 320i (1992)

Sign In
Sign Out
Account

Donate Go Ad Free

This Timing - Timing Chain Lower P technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.

No.	Description	Supp.	Qty	Up To	Part Number	Price	Notes
01	Timing chain		1		11311432176	$65.27	ENDED	Shop at ECS Tuning
02	Sprocket		1		11211719984	$71.52		Shop at ECS Tuning
03	Woodruff key	5X6.5	2		07119951480	$0.88		Shop at ECS Tuning
04	Sprocket		1		11311722841	$62.44		Shop at ECS Tuning
05	Guide rail		1		11311726480	$15.77		Shop at ECS Tuning
06	Bolt		2		11311748817	$5.27	ENDED	Shop at ECS Tuning
07	Chain tensioner		1	09/1994	11311726503	$95.44		Shop at ECS Tuning
07	Chain tensioner		1	09/1994	11311722654			Shop at ECS Tuning
08	Bolt		1	09/1994	11111722324	$5.10		Shop at ECS Tuning
09	Circlip	8,0	1		07119932863	$0.11		Shop at ECS Tuning
10	Piston		1	09/1994	11311722667	$11.15		Shop at ECS Tuning
11	Cylinder		1	09/1994	11311738861	$30.42		Shop at ECS Tuning
12	Coil spring		1		11411706809	$3.43		Shop at ECS Tuning
13	Gasket ring	A26X31-AL	1		07119963418	$0.25		Shop at ECS Tuning
14	Screw Plug With Gasket Ring		1		11311722674	$4.22		Shop at ECS Tuning

Notes

ENDED = the part has been discontinued (no longer available).

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 320i Timing - Timing Chain Lower P?: This technical diagram illustrates the Timing - Timing Chain Lower P within the Engine group for the 3 Series E36 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Timing chain (Part #11311432176).
Which models use the hardware listed in this Timing - Timing Chain Lower P?: The hardware and components featured in the Timing - Timing Chain Lower P are specific to the 3 Series E36 320i produced during 1992. These technical specifications ensure that parts like the Timing chain (11311432176) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Timing - Timing Chain Lower P assembly?: Each item in the Timing - Timing Chain Lower P corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Timing chain by locating its position on the schematic, which then links to the official BMW part number 11311432176 for the Engine section.

Timing - Timing Chain Lower P for BMW 3 Series E36 320i (1992)
