timing gear timing chain top for BMW 3 Series E36 320i (1992)

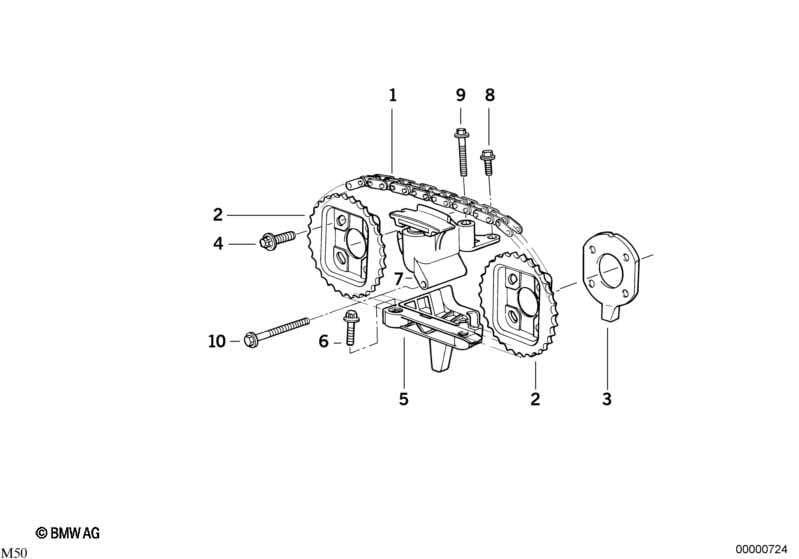

This timing gear timing chain top technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 09/1992 | 11311432177 | $43.59 | ENDED | Shop at ECS Tuning | |||
| 02 | Sprocket | 2 | 09/1992 | 11311726387 | $33.19 | Shop at ECS Tuning | ||||
| 03 | Impulse sending wheel | 1 | 09/1992 | 11311726386 | $27.42 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M7X18 10.9 | 8 | 09/1992 | 11311726412 | $5.13 | Shop at ECS Tuning | |||
| 05 | Guide rail | 1 | 09/1992 | 11311722651 | $21.22 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M6X20 | 2 | 09/1992 | 11311736326 | $0.57 | Shop at ECS Tuning | |||
| 07 | Chain tensioner | 1 | 09/1992 | 11311738700 | $72.93 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 09/1992 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X40 ZNNIV SI | 2 | 09/1992 | 07119904525 | $1.09 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M6X55-Z1 | 1 | 09/1992 | 07119904526 | $0.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i timing gear timing chain top?
- This technical diagram illustrates the timing gear timing chain top within the Engine group for the 3 Series E36 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Timing chain (Part #11311432177).
- Which models use the hardware listed in this timing gear timing chain top?
- The hardware and components featured in the timing gear timing chain top are specific to the 3 Series E36 320i produced during 1992. These technical specifications ensure that parts like the Timing chain (11311432177) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the timing gear timing chain top assembly?
- Each item in the timing gear timing chain top corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Timing chain by locating its position on the schematic, which then links to the official BMW part number 11311432177 for the Engine section.
