Lubrication system-Oil filter for BMW 3 Series E36 325i (1995)

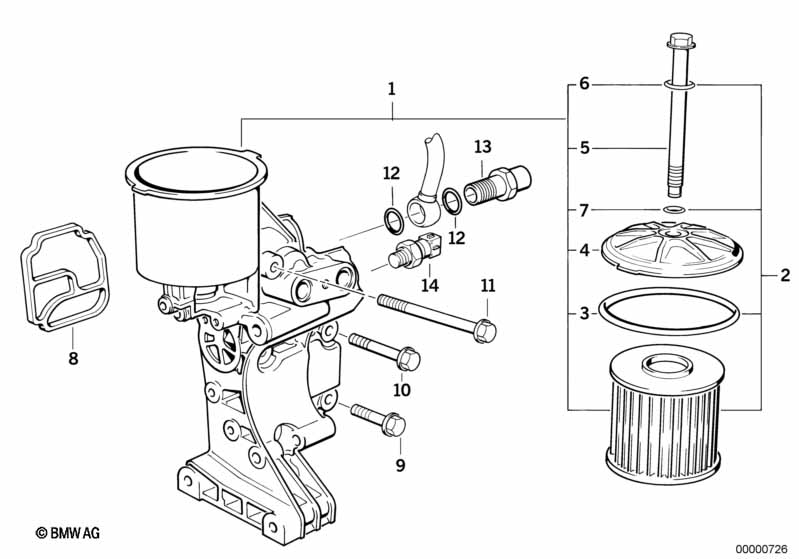

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aggregate support with oil filter | 1 | 09/1992 | 11421738640 | Shop at ECS Tuning | |||||

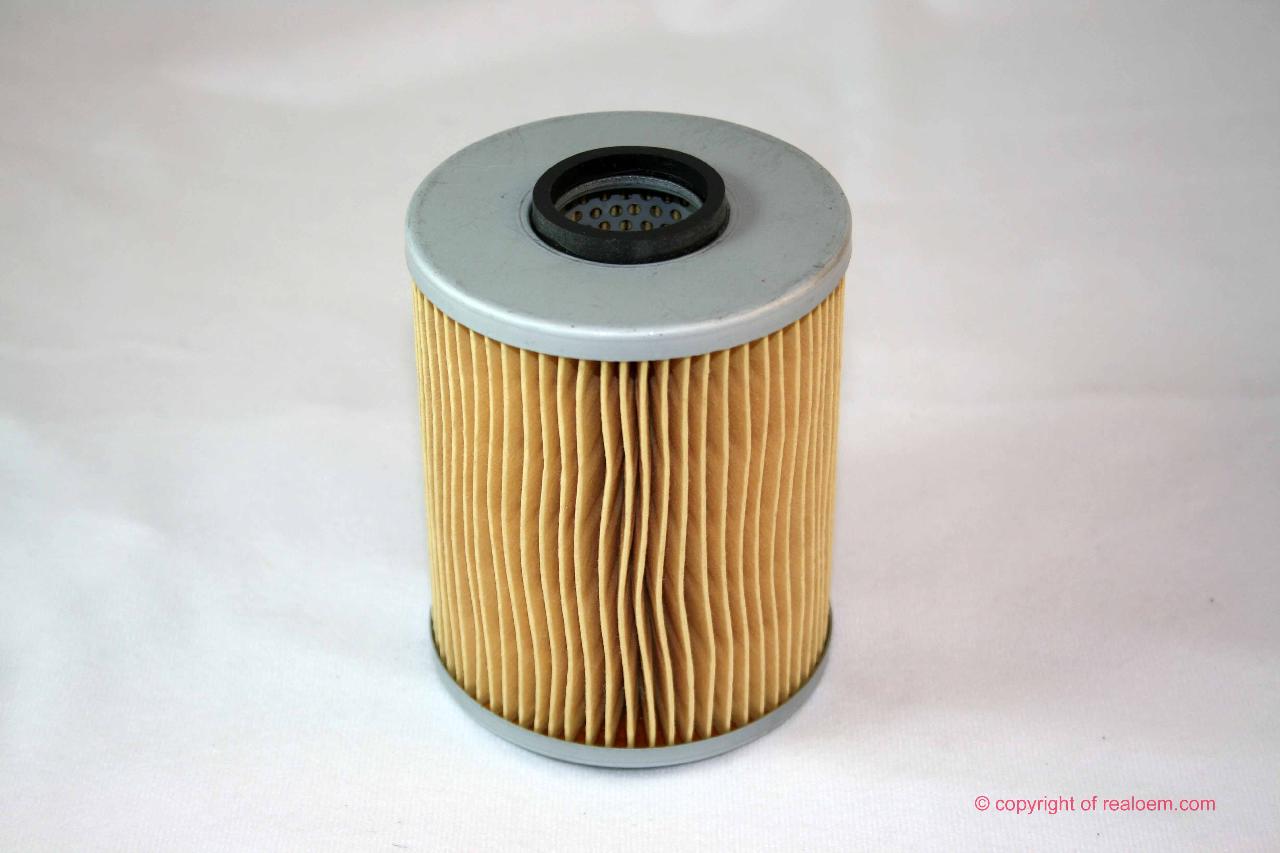

| 02 | Set oil-filter element | 1 | 09/1992 | 11421730389 | $12.25 | Shop at ECS Tuning | ||||
| 03 | O-ring | 91X4 | 1 | 09/1992 | 11421741000 | $5.04 | Shop at ECS Tuning | |||
| 04 | Oil filter cover | 1 | 09/1992 | 11421711075 | $26.45 | Shop at ECS Tuning | ||||
| 05 | Screw | 1 | 09/1992 | 11427839820 | $7.07 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A10X14-ST | 1 | 09/1992 | 07119963080 | $0.82 | Shop at ECS Tuning | |||
| 07 | O-ring | 4,5X1,5 | 1 | 09/1992 | 11421711076 | $0.37 | Shop at ECS Tuning | |||
| 08 | Gasket | 1 | 09/1992 | 11421719855 | $6.08 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X50-U1-8.8 | 3 | 09/1992 | 07119904504 | $1.15 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M8X65-Z3 | 2 | 09/1992 | 07119913003 | $0.96 | Shop at ECS Tuning | |||
| 11 | Hex bolt with washer | M8X100-Z3 | 1 | 09/1992 | 07119912574 | $1.78 | Shop at ECS Tuning | |||
| 12 | Gasket ring | A14X20-CUSN | 2 | 09/1992 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 12 | Gasket ring | A14X20-ALMG | 2 | 09/1992 | 32411129986 | $0.15 | Shop at ECS Tuning | |||
| 14 | Oil pressure switch | M12X1,5 | 1 | 09/1992 | 10/1995 | 12612367061 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
