Timing and valve train-timing chain for BMW 3 Series E36 M3 (1995)

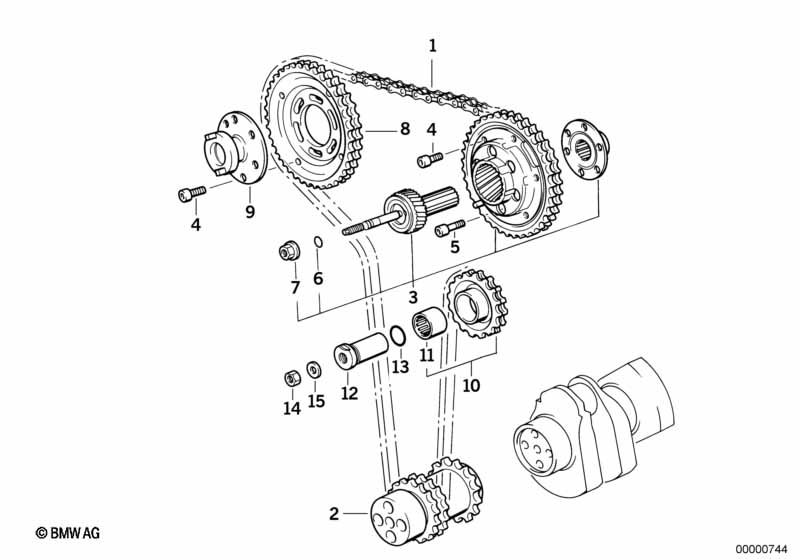

This Timing and valve train-timing chain technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | DOPPELKETTE | 1 | 11311403081 | $130.96 | Shop at ECS Tuning | ||||
| 02 | Sprocket | 1 | 11211401036 | $184.22 | Shop at ECS Tuning | |||||
| 03 | Gear set | 1 | 11361402540 | $1197.88 | Shop at ECS Tuning | |||||
| 04 | ISA screw | M6X16-8.8-ZNNIV | X | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M6X20-8.8-ZNNIV | 6 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
| 06 | O-ring | 5,28X1,78MM | 1 | 11311722056 | $0.58 | Shop at ECS Tuning | ||||
| 07 | Collar nut | M6 | 1 | 11361313170 | $5.18 | Shop at ECS Tuning | ||||
| 08 | Sprocket exhaust | 1 | 11311403367 | $156.24 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Drive Shaft | 1 | 11361401494 | $157.36 | +core | Shop at ECS Tuning | ||||
| 10 | Deflection wheel | 1 | 11311317332 | $53.20 | Shop at ECS Tuning | |||||
| 11 | Needle sleeve | 1 | 11311304258 | $10.25 | ENDED | Shop at ECS Tuning | ||||
| 12 | Axle | 1 | 11311317449 | $31.95 | Shop at ECS Tuning | |||||
| 13 | O-ring | 16X2 | 1 | 11311304257 | $2.88 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
