Crankcase-Ventilation/oil separator for BMW 3 Series E36 M3 (1995)

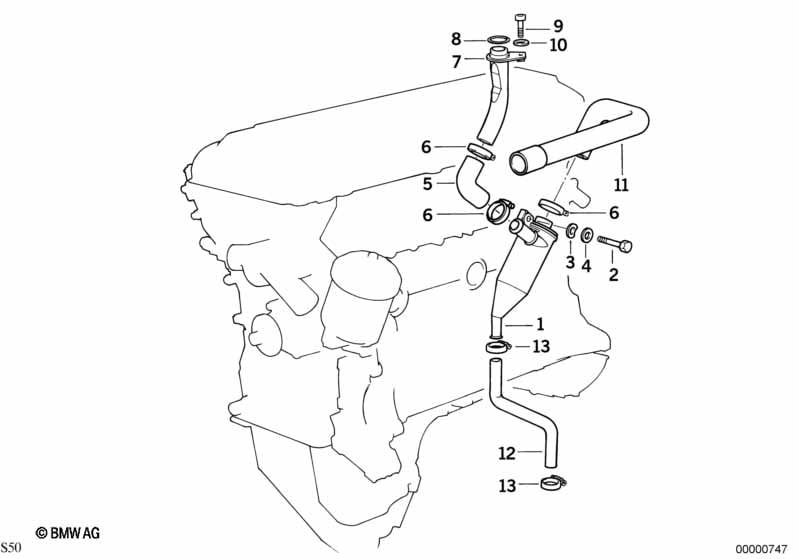

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil separator | 1 | 11151401218 | $40.78 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X55-8.8 | 1 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Vent hose | 1 | 11151401217 | $7.05 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L28-33 | 4 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Vent pipe | 1 | 11151401194 | $33.98 | Shop at ECS Tuning | |||||
| 08 | O-ring | 22,0X3,0MM | 1 | 11151401949 | $1.83 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M6X25 | 1 | 07119919532 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Washer | 6-200 HV-ZNS3 | 1 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 11 | Vent hose | 1 | 11151401544 | $20.88 | Shop at ECS Tuning | |||||
| 12 | Hose | 1 | 11151404157 | $55.19 | +core | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning |
