Cylinder head/intermediate housing for BMW 3 Series E36 M3 (1995)

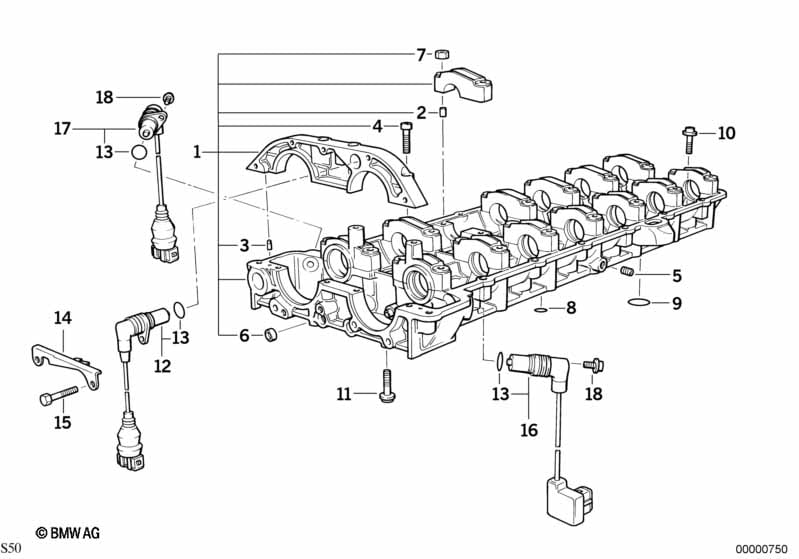

This Cylinder head/intermediate housing technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing gear housing | 1 | 11121404966 | $2071.71 | +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO INDIVIDUAL SERIES 95 GT INTERNATIONAL |
||||||||||
| 01 | Timing gear housing | 1 | 11121404966 | $2071.71 | +core | Shop at ECS Tuning | ||||
| 02 | Dowel | 6X11,6MM | X | 11241315668 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Pin | 2 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | 4 | 11121402085 | $1.68 | Shop at ECS Tuning | |||||
| 05 | Screw plug | M10X1 | 5 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
| 06 | Cover lid | D=12MM | 2 | 07119937234 | $0.22 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-ZNS3 | X | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 08 | O-ring | 12X1,5 | 1 | 11121304173 | $2.21 | Shop at ECS Tuning | ||||
| 09 | O-ring | 28X2 | 6 | 11121304174 | $3.25 | Shop at ECS Tuning | ||||
| 10 | Fillister head with washer | M7X30-Z1 | X | 11121312307 | $1.62 | Shop at ECS Tuning | ||||
| 11 | ISA screw | M6X25-8.8-ZNS3 | 3 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
| 12 | Tdc-sensor | 1 | 12141401888 | $90.58 | +core | Shop at ECS Tuning | ||||
| 13 | O-ring | 18X1,2 | 3 | 12141402705 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Bracket tdc-sensor | 1 | 12141318735 | $4.68 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M6X45 8.8 ZNS3 | 2 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 16 | Intake camshaft sensor | 1 | 12141401889 | $90.58 | +core | Shop at ECS Tuning | ||||
| 17 | Exhaust camshaft sensor | 1 | 12141401890 | $90.58 | +core | Shop at ECS Tuning | ||||
| 18 | Fillister head with washer | M6X16-Z1-8.8 | 2 | 07119902316 | $2.84 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Cylinder head/intermediate housing?
- This technical diagram illustrates the Cylinder head/intermediate housing within the Engine group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Timing gear housing (Part #11121404966).
- Which models use the hardware listed in this Cylinder head/intermediate housing?
- The hardware and components featured in the Cylinder head/intermediate housing are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Timing gear housing (11121404966) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head/intermediate housing assembly?
- Each item in the Cylinder head/intermediate housing corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Timing gear housing by locating its position on the schematic, which then links to the official BMW part number 11121404966 for the Engine section.
