Crankshaft-Pistons for BMW 3 Series E46 318i (1998)

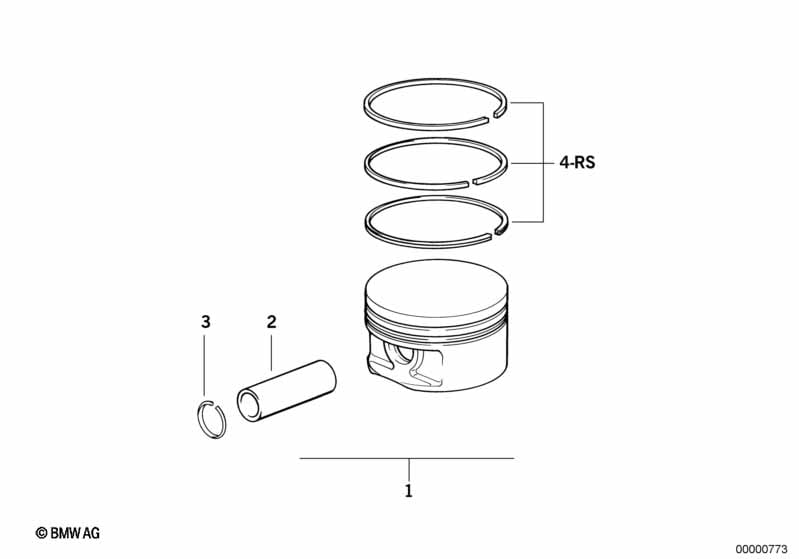

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piston | (0) | 4 | 11251437176 | $268.50 | Shop at ECS Tuning | ||||
| 01 | Piston | (00) | 4 | 11251437177 | $257.76 | ENDED | Shop at ECS Tuning | |||
| 01 | Piston | (+0,25) | 4 | 11251437178 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Piston | (+0,50) | 4 | 11251437179 | Shop at ECS Tuning | |||||
| 03 | Snap ring | C22X1.5 | 8 | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Repair kit piston rings | (0) | 4 | 11251437061 | $52.29 | Shop at ECS Tuning | ||||
| 04 | Repair kit piston rings | (00) | 4 | 11251437062 | $52.29 | Shop at ECS Tuning | ||||
| 04 | Repair kit piston rings | (+0,25) | 4 | 11251437063 | $66.77 | Shop at ECS Tuning | ||||
| 04 | Repair kit piston rings | (+0,50) | 4 | 11251437064 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
