Intake manifold-supercharg.air duct for BMW 3 Series E36 325tds (1998)

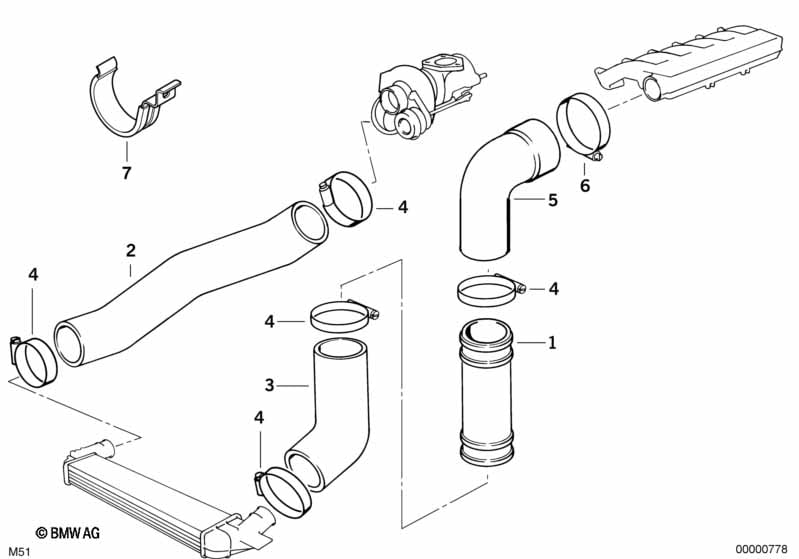

This Intake manifold-supercharg.air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Catalytic converter or Conventional exhaust technique |
=No =Yes |
|||||||||
| 01 | Pressure pipe without exhaust gas valve | 1 | 11712244901 | Shop at ECS Tuning | ||||||
| 02 | Pressure hose assy | 1 | 11612245369 | +core | Shop at ECS Tuning | |||||
| 03 | Pressure hose assy | 1 | 11712244903 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L=53-60MM | 5 | 07129952123 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 11612245743 | +core | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 07 | Charge air tube bracket | 1 | 11612244923 | ENDED | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Intake manifold-supercharg.air duct?
- This technical diagram illustrates the Intake manifold-supercharg.air duct within the Engine group for the 3 Series E36 325tds produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Pressure pipe without exhaust gas valve (Part #11712244901).
- Which models use the hardware listed in this Intake manifold-supercharg.air duct?
- The hardware and components featured in the Intake manifold-supercharg.air duct are specific to the 3 Series E36 325tds produced during 1998. These technical specifications ensure that parts like the Pressure pipe without exhaust gas valve (11712244901) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold-supercharg.air duct assembly?
- Each item in the Intake manifold-supercharg.air duct corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Pressure pipe without exhaust gas valve by locating its position on the schematic, which then links to the official BMW part number 11712244901 for the Engine section.
