Short engine for BMW 3 Series E46 318i (1998)

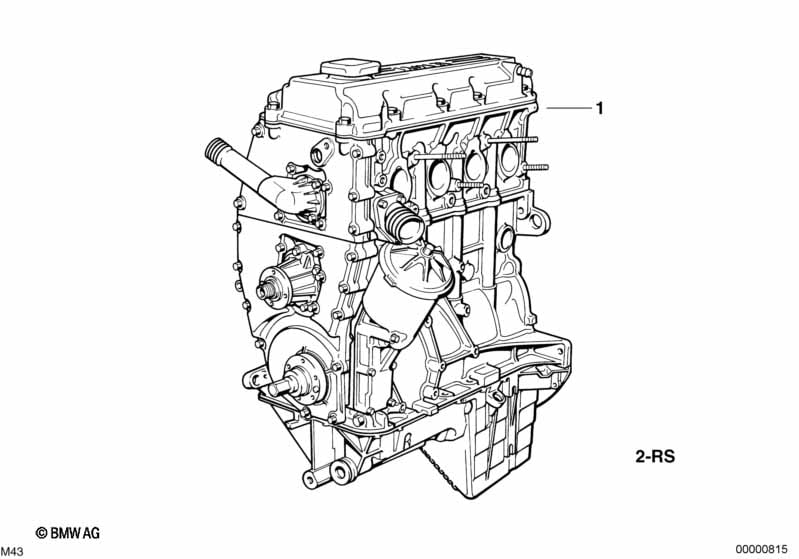

This Short engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Short engine | 194E1 | 1 | 11001712973 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Short engine | 194E1 | 1 | 11001712974 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket Asbestos Free | 1 | 18301728208 | $17.66 | Shop at ECS Tuning | |||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| -- | Hex nut wiht flange | M8 | 8 | 18307620549 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 1 | 13541433319 | Shop at ECS Tuning | ||||||
| -- | Gasket w/heat prot.shield asbestosfree | 1 | 11621743719 | $46.08 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 4 | 11611437383 | $4.12 | Shop at ECS Tuning | |||||
| -- | Profile-gasket | 4 | 11611437384 | $3.63 | Shop at ECS Tuning | |||||
| -- | Flange nut | M7 | 5 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| -- | O-ring | 32X5 | 1 | 11531709157 | $2.04 | Shop at ECS Tuning | ||||
| -- | O-ring | 26,5X2,5 | 1 | 11511739691 | $1.88 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A14X18-CU | 1 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Set Mounting Parts Short Engine | 1 | 11009070960 | $71.15 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
