Cylinder head cover for BMW 3 Series E46 318i (1998)

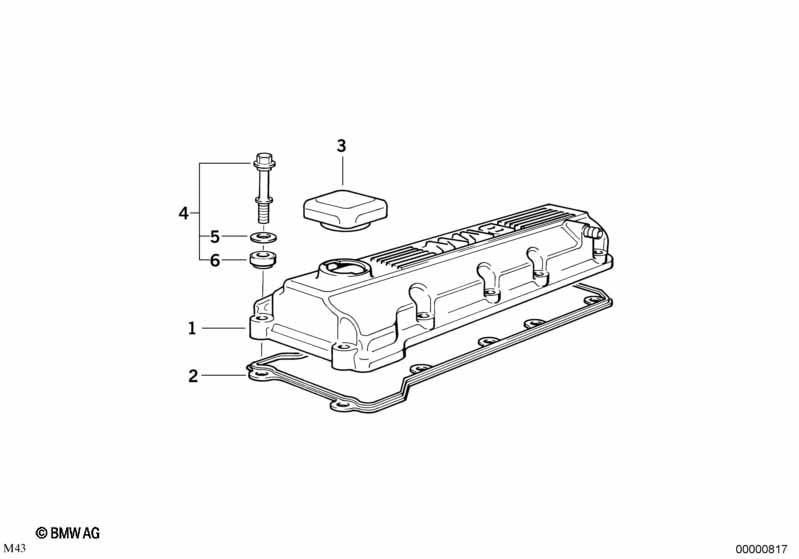

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11121739645 | $265.61 | +core | Shop at ECS Tuning | ||||
| 02 | Gasket | 1 | 11121432885 | $15.02 | Shop at ECS Tuning | |||||

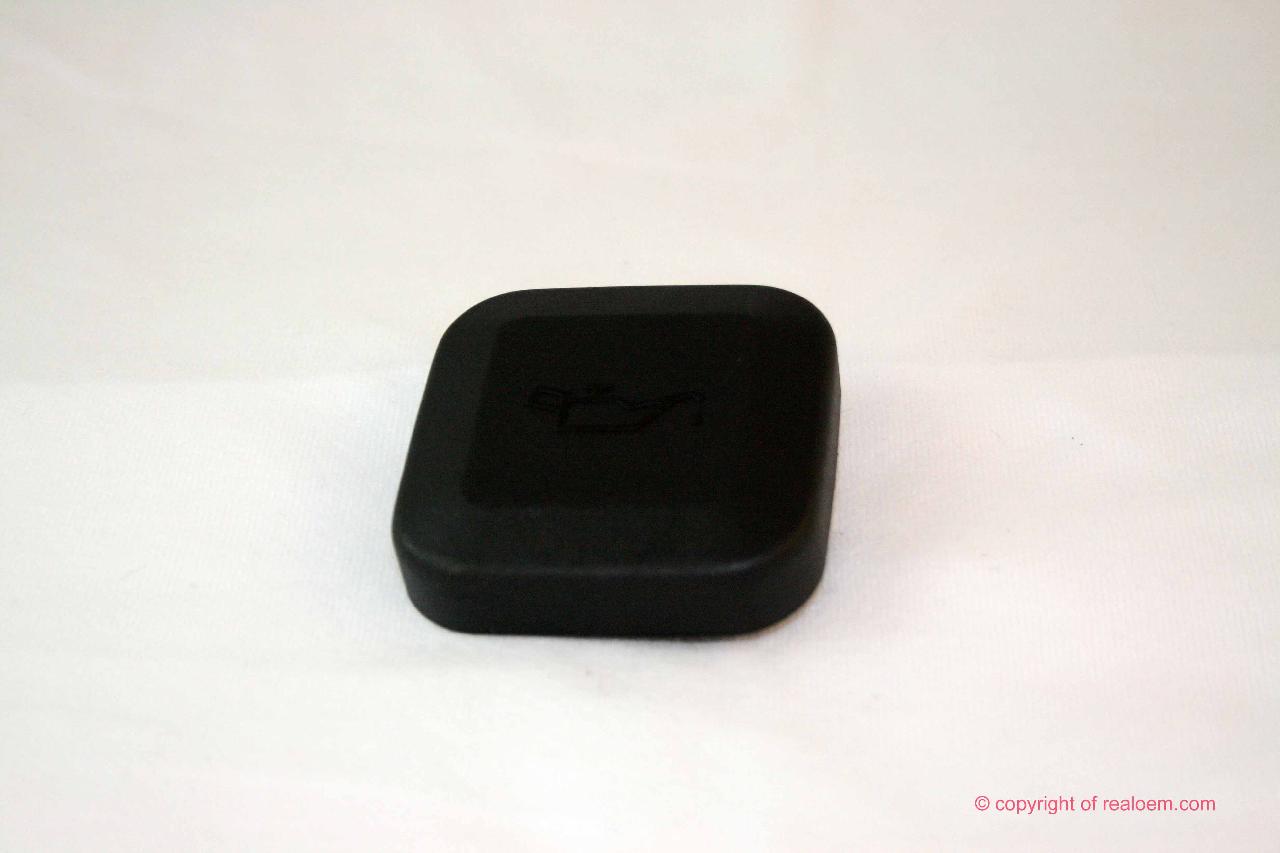

| 03 | Cap for oil filler | 1 | 11121743294 | $7.49 | Shop at ECS Tuning | |||||
| 03 | Cap for oil filler | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M6X42,5 | 8 | 11127568809 | $3.17 | Shop at ECS Tuning | ||||
| 05 | Washer | 10-200 HV-ZNNIV | 8 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 06 | Rubber seal | 8 | 11121721879 | $1.20 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11121739645).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Cylinder head cover (11121739645) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11121739645 for the Engine section.
