Cylinder head cover for BMW 3 Series E36 318is (1996)

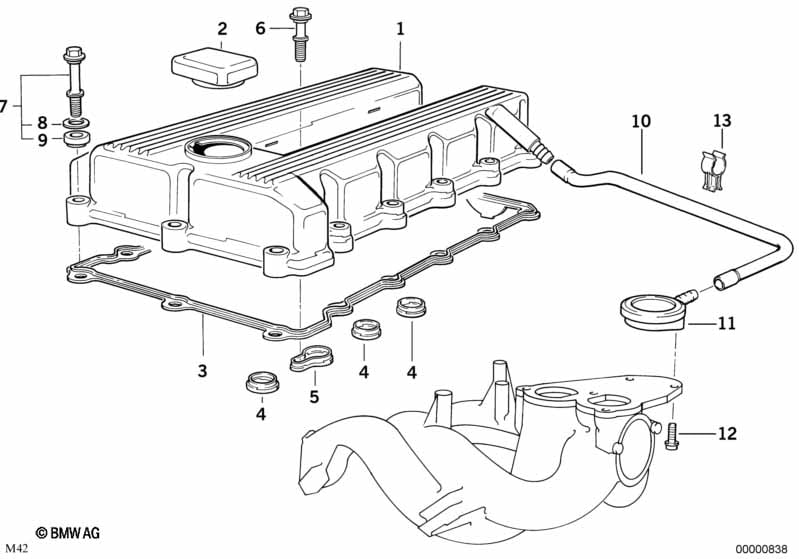

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 09/1993 | 11121739793 | $571.14 | +core | Shop at ECS Tuning | |||
| 02 | Cap for oil filler | 1 | 09/1993 | 11121743294 | $7.49 | Shop at ECS Tuning | ||||
| 02 | Cap for oil filler | 1 | 09/1993 | 11127509328 | $7.78 | Shop at ECS Tuning | ||||
| 03 | Profile-gasket | 1 | 09/1993 | 11121721876 | $22.04 | Shop at ECS Tuning | ||||
| 04 | Profile-gasket | 3 | 09/1993 | 11121721476 | $1.79 | Shop at ECS Tuning | ||||
| 05 | Profile-gasket | 1 | 09/1993 | 11121721475 | $2.13 | Shop at ECS Tuning | ||||
| 06 | Collar screw | M6X27,5 | 2 | 09/1993 | 11121721883 | $2.67 | Shop at ECS Tuning | |||
| 07 | Collar screw | M6X42,5 | X | 09/1993 | 11127568809 | $3.17 | Shop at ECS Tuning | |||
| 08 | Washer | 10-200 HV-ZNNIV | X | 09/1993 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 09 | Rubber seal | X | 09/1993 | 11121721879 | $1.20 | Shop at ECS Tuning | ||||
| 10 | Vent hose | 1 | 09/1993 | 11151247743 | $30.16 | Shop at ECS Tuning | ||||
| 11 | Crank case vent valve | 1 | 09/1993 | 11157501567 | $61.05 | Shop at ECS Tuning | ||||
| 12 | Fillister head with washer | M6X20-Z1 10.9 | 1 | 09/1993 | 07119900678 | $0.71 | Shop at ECS Tuning | |||
| 13 | Hose clamp | 1 | 09/1993 | 11611739684 | $1.77 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Vent hose | X | 09/1993 | 11151739547 | $13.60 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
