Intake manifold system for BMW 7 Series E38 730i (1996)

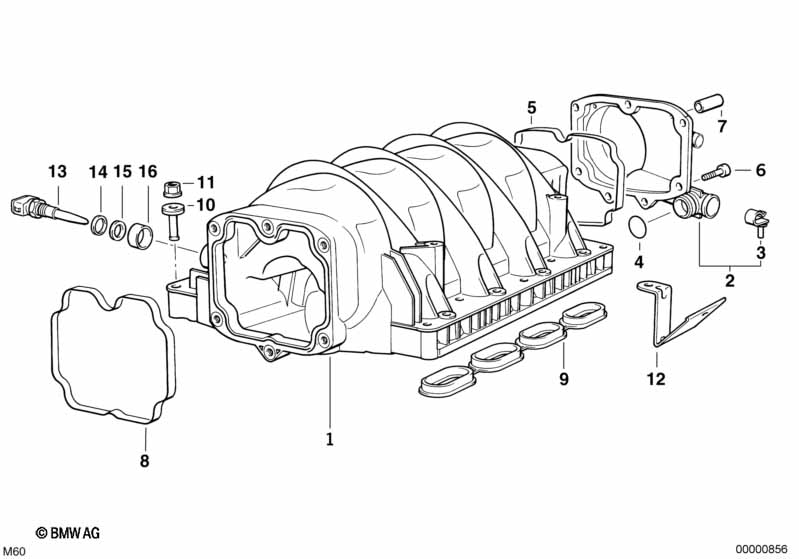

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11611729692 | $615.48 | Shop at ECS Tuning | |||||
| 02 | Cover with non-returnvalve | 1 | 11617501562 | $54.81 | Shop at ECS Tuning | |||||
| 03 | Holder | 1 | 11611704805 | $1.28 | Shop at ECS Tuning | |||||
| 04 | O-ring | 20,0X3,55 | 1 | 11151736140 | $2.10 | Shop at ECS Tuning | ||||
| 05 | Profile-gasket | 1 | 11611729728 | $7.54 | Shop at ECS Tuning | |||||
| 06 | Screw | M6X25 | X | 11141460752 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Cap | D=5,0MM | 6 | 11611437694 | $3.39 | Shop at ECS Tuning | ||||
| 08 | Profile-gasket | 1 | 11611729727 | $7.54 | Shop at ECS Tuning | |||||
| 09 | Profile-gasket | 4 | 11611433328 | $27.37 | Shop at ECS Tuning | |||||
| 10 | Spacer | X | 11611736648 | $3.54 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | AM7 ZNNIV SI | X | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Bracket f Bowden cable | 1 | 11611747874 | $5.52 | Shop at ECS Tuning | |||||
| 13 | Intake air temperature sensor | 1 | 13621725324 | Shop at ECS Tuning | ||||||
| 14 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Shim | 12X2,5-ZNS3 | 1 | 05/2018 | 26111225404 | $0.43 | Shop at ECS Tuning | |||
| 15 | Shim | 12X2,5-ZNS3 | 1 | 26112463728 | Shop at ECS Tuning | |||||
| 16 | Profile-gasket | 1 | 11611736013 | $1.52 | Shop at ECS Tuning |
