Upper timing case for BMW 7 Series E38 740i (1996)

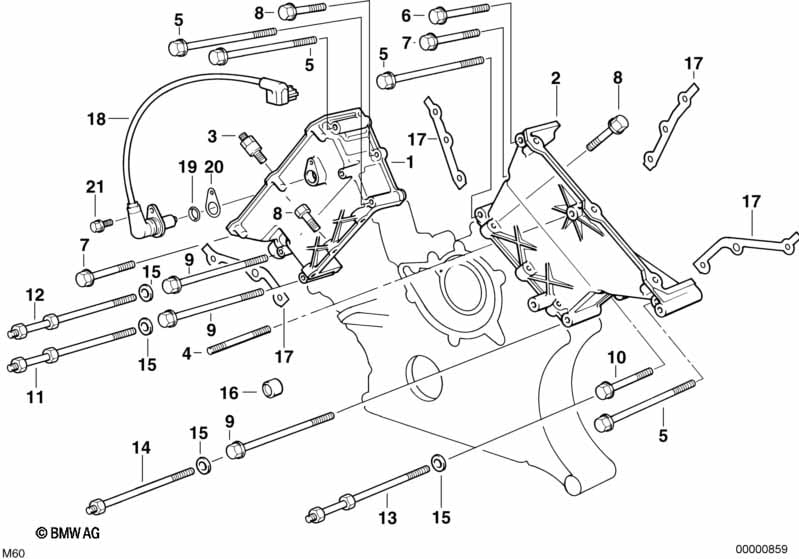

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, top | ZYL.1-4 | 1 | 11141729583 | $96.98 | Shop at ECS Tuning | ||||
| 02 | Timing case cover, top | ZYL.5-8 | 1 | 11141747597 | $96.98 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | 6 | 11121733295 | $2.23 | Shop at ECS Tuning | |||||
| 04 | Stud bolt | M6X45 | 1 | 07129908105 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X80-U1-8.8 | 4 | 07119906085 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X40 | 1 | 11141731753 | $0.58 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X40 | 2 | 11141731753 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X30-Z1 | 7 | 11147558183 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X80-U1-8.8 | 3 | 07119906085 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X40 | 1 | 11141731753 | $0.58 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 8,1X3,5X7,7 | 1 | 11141736758 | $1.71 | Shop at ECS Tuning | ||||
| 17 | Gasket set chain case asbestofree | ZYL.1-4 | 1 | 11141433305 | $10.08 | ENDED | Shop at ECS Tuning | |||
| 17 | Gasket set chain case asbestofree | ZYL.5-8 | 1 | 11141433306 | $10.08 | Shop at ECS Tuning | ||||
| 18 | Trigger contact | 1 | 12141729291 | Shop at ECS Tuning | ||||||
| 19 | O-ring | 18X2 | 1 | 12141727220 | $0.70 | Shop at ECS Tuning | ||||
| 20 | Intermediate plate | 1 | 12141733000 | $1.18 | Shop at ECS Tuning | |||||
| 21 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
