Engine Block Mounting Parts for BMW 3 Series E36 318tds (2000)

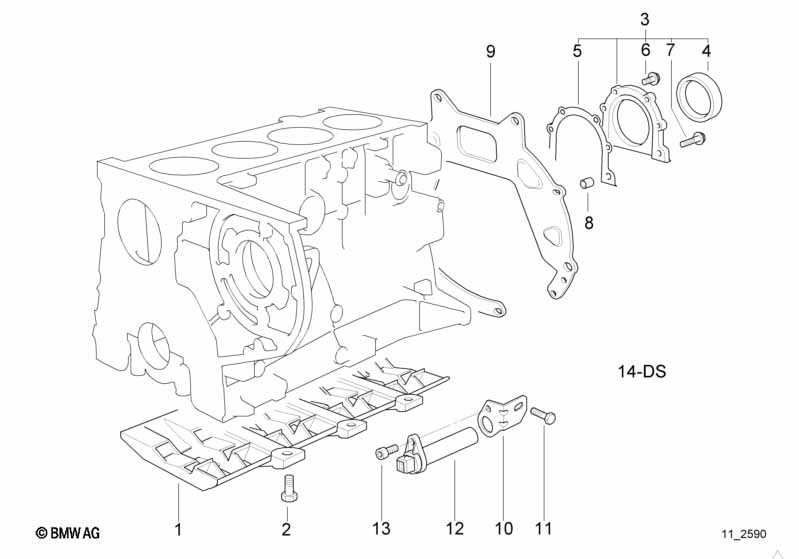

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bowl reinforcement | 1 | 11112245416 | +core | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X20-ZNS3 | 6 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 03 | Set of covers | 1 | 11142247867 | $94.60 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 05 | Gasket Steel | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X26-10.9-ZNS3 | 2 | 07119904092 | Shop at ECS Tuning | |||||
| 08 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Covering plate | 1 | 11142244253 | ENDED | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 12522245611 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X10-Z1 | 1 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Speed sensor | 1 | 13622243560 | $142.05 | Shop at ECS Tuning | |||||
| 13 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning | |||||
| 14 | Gasket Set Engine Block Asbesto Free | 1 | 11112246703 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
