Oil pan/oil level indicator for BMW 3 Series E36 318tds (2000)

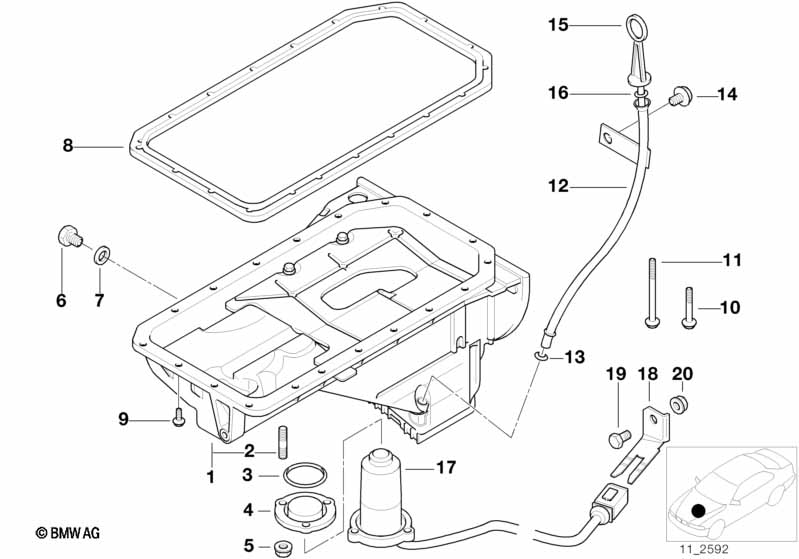

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11132246677 | +core | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Gasket Asbestos Free | 1 | 11139067655 | $28.74 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Torx bolt | M6X22 | 15 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X20 | 15 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | M6X22 | 15 | 09/1997 | 11137800619 | $0.67 | Shop at ECS Tuning | |||
| 10 | Torx bolt | M6X60-ZNNIV SI | 2 | 09/1997 | 11137800622 | $1.08 | Shop at ECS Tuning | |||
| 11 | Torx bolt | M6X100 | 2 | 09/1997 | 11137800623 | $1.65 | Shop at ECS Tuning | |||
| 12 | Guide tube | 1 | 11432247035 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Dipstick | 1 | 11432246521 | Shop at ECS Tuning | ||||||
| 16 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 17 | Oil-level sensor | 1 | 03/1996 | 12612246608 | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 03/1996 | 12612246609 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X14-ZNNIV SI | 1 | 03/1996 | 07119905964 | Shop at ECS Tuning | ||||
| 20 | Hex nut | BM6-8-ZNNIV SI | 1 | 03/1996 | 07129905411 | $0.38 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Oil pan/oil level indicator?
- This technical diagram illustrates the Oil pan/oil level indicator within the Engine group for the 3 Series E36 318tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Oil Pan (Part #11132246677).
- Which models use the hardware listed in this Oil pan/oil level indicator?
- The hardware and components featured in the Oil pan/oil level indicator are specific to the 3 Series E36 318tds produced during 2000. These technical specifications ensure that parts like the Oil Pan (11132246677) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan/oil level indicator assembly?
- Each item in the Oil pan/oil level indicator corresponds to the numbered list below the illustration. For the 3 Series E36 318tds, you can identify the Oil Pan by locating its position on the schematic, which then links to the official BMW part number 11132246677 for the Engine section.
