Crankshaft-Pistons for BMW 5 Series E39 525tds (1998)

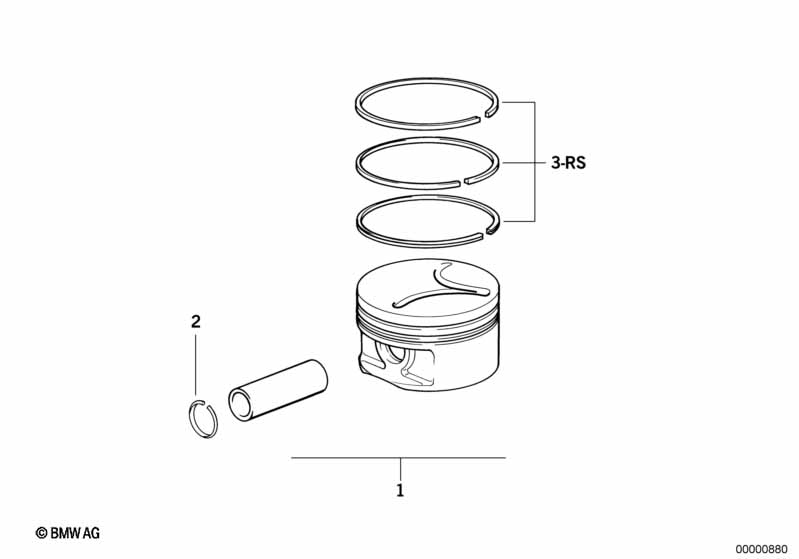

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nueral/alcan piston | 79,960MM(0) | 6 | 11252246629 | $347.27 | Shop at ECS Tuning | ||||
| 01 | Nueral/alcan piston | 80,040MM(00) | 6 | 11252246630 | $347.27 | Shop at ECS Tuning | ||||
| 01 | Nueral/alcan piston | 80,210MM(+0,25) | 6 | 11252246631 | $347.27 | Shop at ECS Tuning | ||||
| 02 | Snap ring | 12 | 11252243841 | Shop at ECS Tuning | ||||||
| 03 | Repair kit piston rings | (0) | 6 | 11252243860 | $91.65 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (00) | 6 | 11252243861 | $91.65 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (+0,25) | 6 | 11252243862 | $91.65 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
