Intake manifold system-AGR for BMW 3 Series E36 318tds (2000)

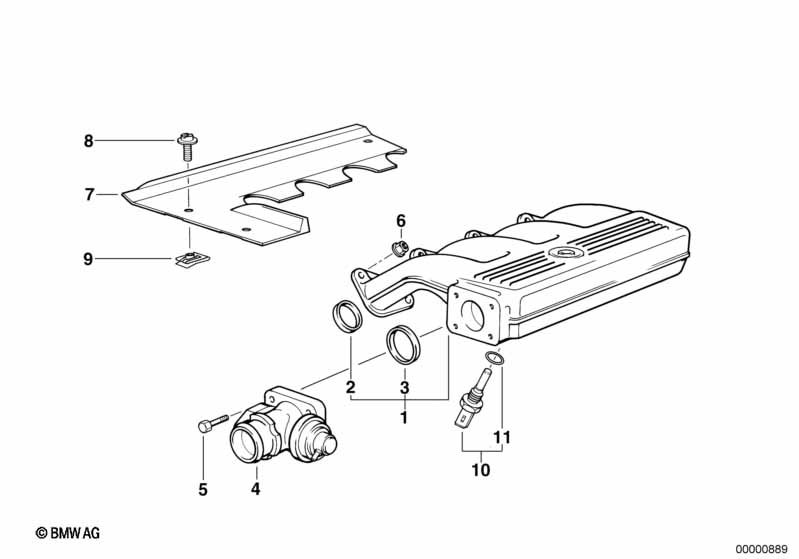

This Intake manifold system-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11612245437 | +core | Shop at ECS Tuning | |||||
| 02 | Rubber seal | 4 | 11612245438 | Shop at ECS Tuning | ||||||
| 03 | Rubber seal | 1 | 11612245439 | $2.42 | Shop at ECS Tuning | |||||
| 04 | EGR-valve | 1 | 11712248139 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Hex nut wiht flange | M8 | 8 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover | 1 | 11142245558 | Shop at ECS Tuning | ||||||
| 08 | Fillister-head screw | M6X16 | 4 | 11142244595 | Shop at ECS Tuning | |||||
| 09 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Intake air temperature sensor | 1 | 13629899008 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 8X3 | 1 | 13621743299 | $1.25 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
