Vacuum pump with tubes for BMW 3 Series E36 318tds (1999)

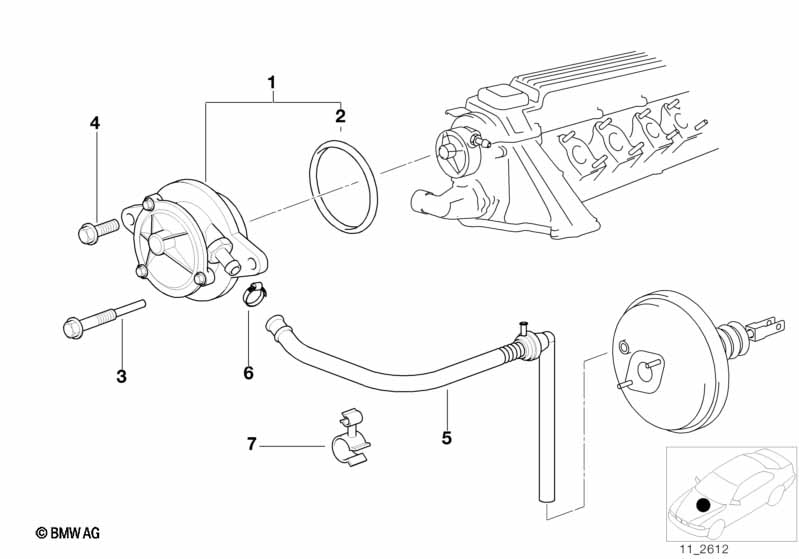

This Vacuum pump with tubes technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.

Vacuum pump with tubes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i VACUUM PIPE
REFER TO MAIN GROUP 34
01 Vacuum pump 1 09/1995 11662249939 $413.98 +core Shop at ECS Tuning
02 O-ring 61X3,5 1 11667794767 $6.02 Shop at ECS Tuning
03 Hex bolt 1 11662243307 Shop at ECS Tuning
04 Hex bolt with washer M8X26-10.9-ZNS3 1 07119904092 Shop at ECS Tuning
06 Hose clamp L18-24 1 07129952109 $1.07 Shop at ECS Tuning
07 Hose clamp 1 13311274792 $1.73 Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
