Lower timing case for BMW 7 Series E38 750i (1998)

This Lower timing case technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Lower timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lower chain case 1 09/1998 11141702169 $196.42 +core Shop at ECS Tuning
02 Gasket Asbestos Free 1 09/1998 11141725756 $10.46 Shop at ECS Tuning
03 Hex bolt M6X20-8.8-ZNS X 09/1998 07119913016 $0.60 ENDED Shop at ECS Tuning
04 Washer A6,4-ZNNIV SI X 09/1998 07119904202 Shop at ECS Tuning
05 Timing case cover, bottom 1 09/1998 11141736517 $211.52 +core Shop at ECS Tuning
06 Shaft seal 55X72X10 1 09/1998 11141725994 $29.38 Shop at ECS Tuning
07 Dowel D=10,5MM 2 09/1998 11121726238 $1.62 Shop at ECS Tuning
08 Gasket Asbestos Free 1 09/1998 11141725758 $2.92 Shop at ECS Tuning
09 Gasket Asbestos Free 1 09/1998 11141725760 $2.12 Shop at ECS Tuning
10 Gasket Asbestos Free 1 09/1998 11141725762 $2.81 Shop at ECS Tuning
11 Hex bolt M6X28-8.8-ZNS X 09/1998 07119913021 $2.30 Shop at ECS Tuning
12 Hex bolt M8X75-8.8-ZNS3 2 09/1998 07119906028 Shop at ECS Tuning
13 Wave washer 8,4X15-ZNS3 2 09/1998 07119904115 $0.09 Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).

See Also

SHORT ENGINE SHORT ENGINE
ENGINE BLOCK ENGINE BLOCK
ENGINE BLOCK MOUNTING PARTS ENGINE BLOCK MOUNTING PARTS
OIL PAN/OIL LEVEL INDICATOR OIL PAN/OIL LEVEL INDICATOR
UPPER TIMING CASE UPPER TIMING CASE
UPPER TIMING CASE UPPER TIMING CASE
CYLINDER HEAD COVER CYLINDER HEAD COVER
CYLINDER HEAD CYLINDER HEAD
CRANKCASE-VENTILATION CRANKCASE-VENTILATION
CYLINDER HEAD ATTACHED PARTS CYLINDER HEAD ATTACHED PARTS
BELT DRIVE-VIBRATION DAMPER BELT DRIVE-VIBRATION DAMPER
BELT DRIVE FOR ALTERNATOR/VANE PUMP BELT DRIVE FOR ALTERNATOR/VANE PUMP
BELT DRIVE FOR WATER PUMP/CLIM.COMPRESS. BELT DRIVE FOR WATER PUMP/CLIM.COMPRESS.
CRANKSHAFT-PISTONS CRANKSHAFT-PISTONS
FLYWHEEL AUTOMATIC FLYWHEEL AUTOMATIC
CRANKSHAFT WITH BEARING SHELLS CRANKSHAFT WITH BEARING SHELLS
CRANKSHAFT CONNECTING ROD CRANKSHAFT CONNECTING ROD
TIMING AND VALVE TRAIN-TIMING CHAIN TIMING AND VALVE TRAIN-TIMING CHAIN
VALVE TIMING GEAR - CAM SHAFT VALVE TIMING GEAR - CAM SHAFT
LUBRICATION SYSTEM/OIL PUMP WITH DRIVE LUBRICATION SYSTEM/OIL PUMP WITH DRIVE

Frequently Asked Questions

What assembly is shown in the BMW 7 Series E38 750i Lower timing case?

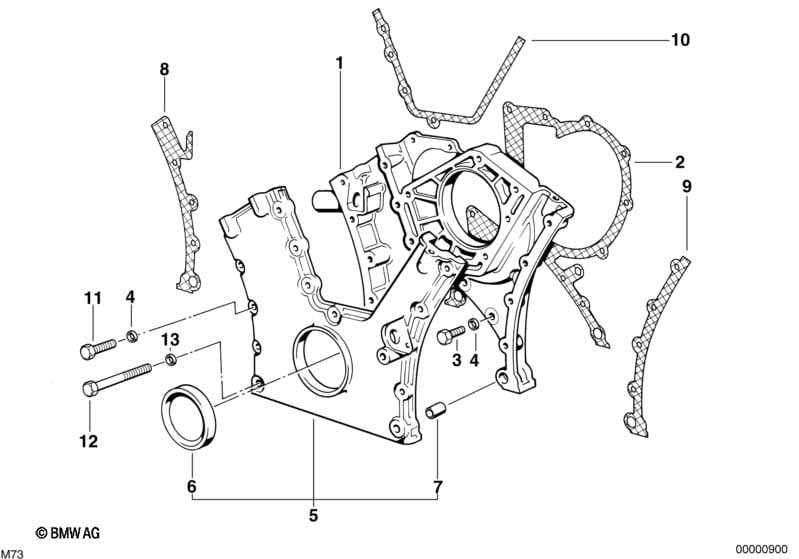

This technical diagram illustrates the Lower timing case within the Engine group for the 7 Series E38 750i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Lower chain case (Part #11141702169).
