Upper timing case for BMW 7 Series E38 L7 (1998)

Sign In
Sign Out
Account

Donate Go Ad Free

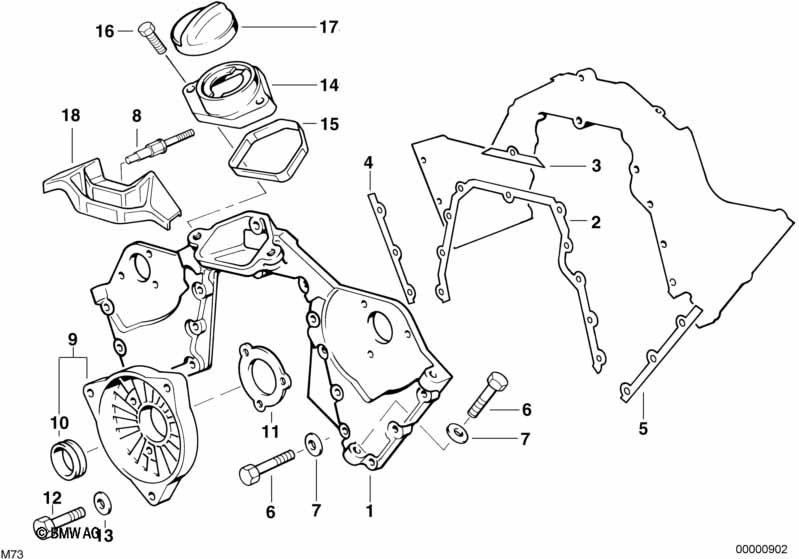

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

No.	Description	Supp.	Qty	From	Part Number	Price	Notes
01	Timing case cover, top		1		11141725802	$215.52		Shop at ECS Tuning
02	Gasket Asbestos Free		1		11141725770	$4.48		Shop at ECS Tuning
03	Gasket Asbestos Free		1		11141725778	$1.75		Shop at ECS Tuning
04	Gasket Asbestos Free	ZYL.1-6	1		11141725776	$4.25	ENDED	Shop at ECS Tuning
05	Gasket Asbestos Free	ZYL.7-12	1		11141725772	$4.25		Shop at ECS Tuning
06	Hex bolt	M6X28-8.8-ZNS	18		07119913021	$2.30		Shop at ECS Tuning
07	Washer	A6,4-ZNNIV SI	18		07119904202			Shop at ECS Tuning
08	Screw		1		11141733510	$9.23		Shop at ECS Tuning
09	Cover f.distributor		2		11141715722	$60.72		Shop at ECS Tuning
10	Shaft seal	28X40X7	2		11141709060			Shop at ECS Tuning
11	Gasket		2		11141725780	$3.67		Shop at ECS Tuning
12	Fillister-head screw	M6X16-8.8-ZNS	6		07119919713	$1.20		Shop at ECS Tuning
12	ISA screw	M6X16-8.8-ZNS3	6		07129905494	$3.65		Shop at ECS Tuning
13	Gasket ring	A6,5X11-CU	6		07119963044	$0.20		Shop at ECS Tuning
14	Oil fill-in tube		1		11141733068	$8.50	ENDED	Shop at ECS Tuning
15	Gasket ring		1		11141729459	$3.96		Shop at ECS Tuning
16	Hex bolt with washer	M6X25	2		11121736603	$0.65		Shop at ECS Tuning
17	Cap for oil filler		1		11127509328	$7.78		Shop at ECS Tuning
18	Covering plate		1	03/1996	11141433898	$16.92		Shop at ECS Tuning

Notes

ENDED = the part has been discontinued (no longer available).
