Belt drive for alternator/vane pump for BMW 7 Series E38 750iLP (2001)

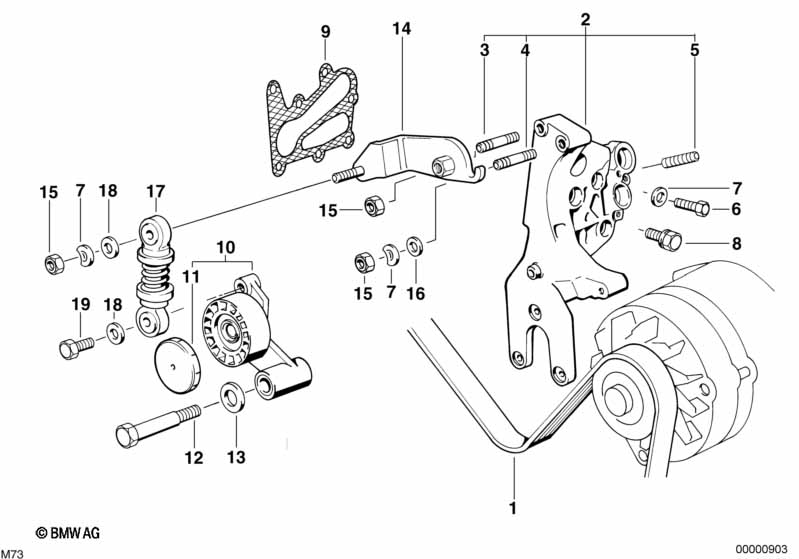

This Belt drive for alternator/vane pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 7K X 1040 | 1 | 04/2000 | 11287512972 | $37.60 | Shop at ECS Tuning | |||
| 02 | Generator supporting bracket | 1 | 12312457983 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X25-Z3 | 6 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 12311742943 | $3.75 | Shop at ECS Tuning | |||||
| 10 | Adjusting pulley | 1 | 11281745550 | $138.08 | ENDED | Shop at ECS Tuning | ||||
| 11 | Protection cap | 1 | 11281435114 | $2.37 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X60-ZNNIV SI | 1 | 07119905974 | Shop at ECS Tuning | |||||
| 13 | Washer | 1 | 11281713970 | $0.40 | Shop at ECS Tuning | |||||
| 14 | Adjust-lever | 1 | 11281435244 | $8.75 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 16 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Belt tensioner | 1 | 11281745819 | $187.65 | Shop at ECS Tuning | |||||
| 18 | Washer | 2 | 11287835130 | $0.72 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
