Belt drive for water pump/clim.compress. for BMW 7 Series E38 L7 (1998)

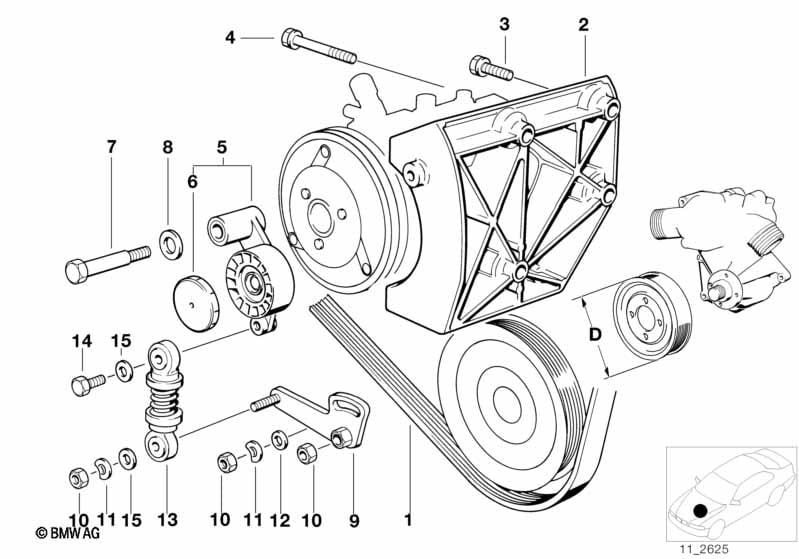

This Belt drive for water pump/clim.compress. technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 6K X 1195 | 1 | 09/1998 | 11288672071 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Pulley | D=105MM | X | 09/1998 | 11511741426 | $49.27 | Shop at ECS Tuning | |||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Ribbed v-belt | PK6X1180 | 1 | 11287636368 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Pulley | D=93MM | X | 11511704635 | $29.93 | Shop at ECS Tuning | ||||
| 02 | Climate compressor supporting bracket | 1 | 64551435300 | $92.35 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X35-Z1 | 4 | 07119901686 | $0.54 | Shop at ECS Tuning | ||||
| 05 | Adjusting pulley | 1 | 09/1998 | 11281720039 | $138.08 | Shop at ECS Tuning | ||||
| 06 | Protection cap adjusting pulley | 1 | 09/1998 | 11281727159 | $2.37 | Shop at ECS Tuning | ||||
| 07 | Fit bolt | M8X60 | 1 | 07119905850 | $6.76 | Shop at ECS Tuning | ||||
| 08 | Washer | 1 | 11281713970 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Adjust-lever | 1 | 11281736973 | $7.90 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Belt tensioner | 1 | 09/1998 | 11281736857 | $91.76 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Washer | 2 | 09/1998 | 11281715625 | $0.22 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
