Engine Block Mounting Parts for BMW 5 Series E39 528i (1998)

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil deflector 1 09/1998 11137502668 $32.22 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
01 Oil deflector 1 09/1998 11131433060 $32.22 ENDED Shop at ECS Tuning
02 Hex bolt with washer M6X12-U1-8.8 8 09/1998 07119904517 $0.36 Shop at ECS Tuning
03 Bracket 1 09/1998 11111703857 $7.62 Shop at ECS Tuning
04 Hex bolt with washer M8X18-U1-8.8 2 09/1998 07119905529 $0.96 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
04 Hex bolt with washer M8X16 2 09/1998 07119905528 $0.62 Shop at ECS Tuning
05 Covering plate 1 09/1998 11141734019 $11.15 ENDED Shop at ECS Tuning
07 Blind plug 11,50MM 1 09/1998 11111714541 $1.60 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
07 Blind plug 11,50MM 1 09/1998 11111714541 $1.60 Shop at ECS Tuning
08 Set of covers 1 09/1998 11141438274 $94.60 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
08 Set of covers 1 09/1998 11142247867 $94.60 ENDED Shop at ECS Tuning
09 Shaft seal 90X110X12 1 09/1998 11142249533 $58.96 Shop at ECS Tuning
10 Gasket Steel 1 09/1998 11141432240 $3.10 Shop at ECS Tuning
11 Hex bolt with washer M6X28-Z1 4 09/1998 07119913975 $0.24 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
11 Hex bolt with washer M6X25-ZNNIV SI 4 09/1998 07119905400 $0.65 Shop at ECS Tuning
12 Hex bolt with washer M8X32-Z1 2 09/1998 11141744147 $0.85 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
12 Hex bolt with washer M8X28-ZNNIV SI 2 07119905530 $0.71 Shop at ECS Tuning
13 Dowel D=10,5MM 2 09/1998 11121726238 $1.62 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
14 Oil Spraying Nozzle 6 09/1998 11421748199 $14.97 Shop at ECS Tuning
15 Oil Spraying Nozzle 6 09/1998 11427507384 $14.97 Shop at ECS Tuning
16 Fillister-head screw M6X16ZNNIV SI 6 09/1998 13627545338 $0.47 Shop at ECS Tuning
17 Bolt 1 09/1998 11311703718 $5.27 Shop at ECS Tuning
18 Bolt 2 09/1998 11311748817 $5.27 ENDED Shop at ECS Tuning
19 Gasket Set Engine Block Asbesto Free 1 09/1998 11111740981 $143.35 Shop at ECS Tuning
20 Ping Sensor 1 09/1998 12141703276 $90.58 Shop at ECS Tuning
21 Hex bolt M8X30-ZN 2 09/1998 07119913662 $0.22 Shop at ECS Tuning
22 Blind plug 1 03/1998 09/1998 11111433062 $7.37 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
22 Blind plug 1 09/1998 11111433062 $7.37 Shop at ECS Tuning
23 O-ring 17X3 1 03/1998 09/1998 12141748398 $1.20 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
23 O-ring 17X3 1 09/1998 12141748398 $1.20 Shop at ECS Tuning
24 Fillister-head screw M6X16ZNNIV SI 1 03/1998 09/1998 13627545338 $0.47 Shop at ECS Tuning
only applies to special engine with
grey cast-iron crankcase
24 Fillister-head screw M6X16ZNNIV SI 1 09/1998 13627545338 $0.47 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

SHORT ENGINE SHORT ENGINE
SHORT ENGINE SHORT ENGINE
TIMING CASE TIMING CASE
OIL PAN/OIL LEVEL INDICATOR OIL PAN/OIL LEVEL INDICATOR
ENGINE BLOCK ENGINE BLOCK
ENGINE BLOCK ENGINE BLOCK
ENGINE BLOCK MOUNTING PARTS ENGINE BLOCK MOUNTING PARTS
TIMING CASE TIMING CASE
OIL PAN/OIL LEVEL INDICATOR OIL PAN/OIL LEVEL INDICATOR
CYLINDER HEAD VANOS CYLINDER HEAD VANOS
CRANKCASE-VENTILATION/OIL SEPARATOR CRANKCASE-VENTILATION/OIL SEPARATOR
CYLINDER HEAD CYLINDER HEAD
CYLINDER HEAD ATTACHED PARTS CYLINDER HEAD ATTACHED PARTS
CYLINDER HEAD COVER CYLINDER HEAD COVER
CYLINDER HEAD ATTACHED PARTS CYLINDER HEAD ATTACHED PARTS
CYLINDER HEAD VANOS CYLINDER HEAD VANOS
CYLINDER HEAD COVER CYLINDER HEAD COVER
CRANKCASE-VENTILATION/OIL SEPARATOR CRANKCASE-VENTILATION/OIL SEPARATOR
CYLINDER HEAD CYLINDER HEAD
BELT DRIVE-VIBRATION DAMPER BELT DRIVE-VIBRATION DAMPER

Frequently Asked Questions

What assembly is shown in the BMW 5 Series E39 528i Engine Block Mounting Parts?

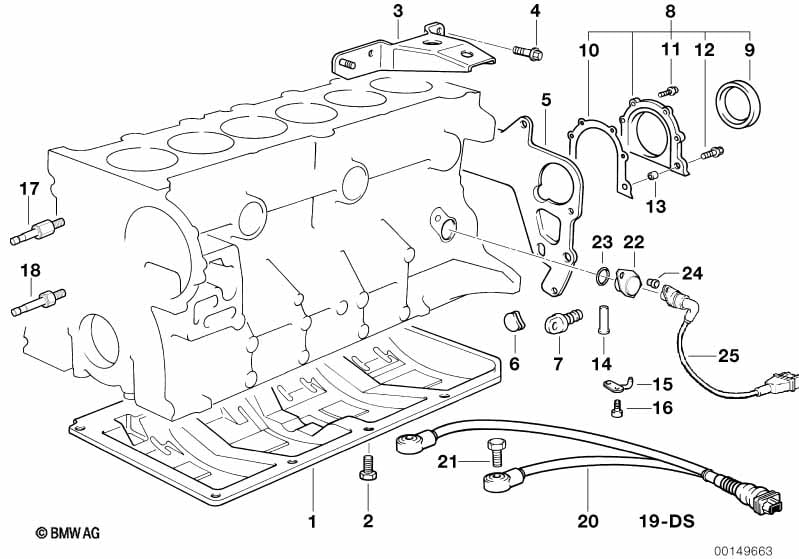

This technical diagram illustrates the Engine Block Mounting Parts within the Engine group for the 5 Series E39 528i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Oil deflector (Part #11137502668).
