Emission control-air pump for BMW 7 Series E38 750iLS (2001)

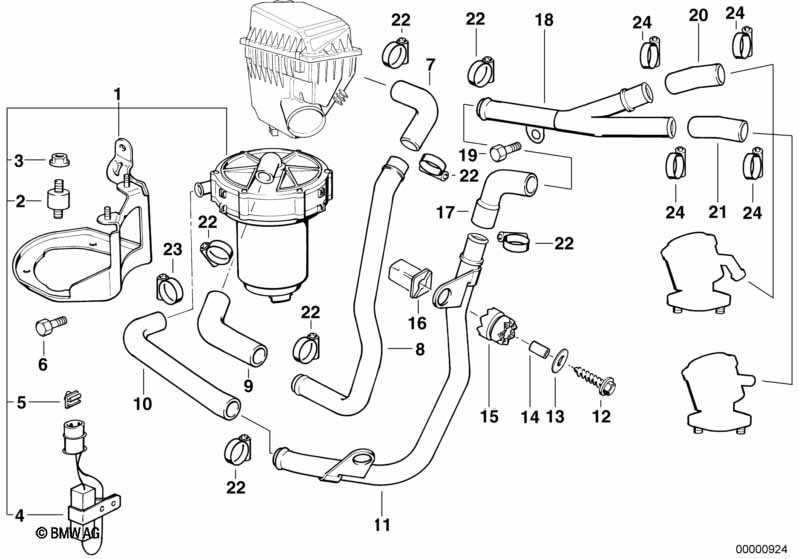

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 09/1998 | 11727508427 | $399.52 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | M6 | 3 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M6 ZNT | 5 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Resistor | 1 | 09/1998 | 11727508428 | $62.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Hose | 1 | 11721742134 | $11.68 | Shop at ECS Tuning | |||||
| 08 | Suction pipe | 1 | 11721742135 | $67.30 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 11721741830 | $17.83 | Shop at ECS Tuning | |||||
| 10 | Hose | 1 | 11721741698 | $23.14 | Shop at ECS Tuning | |||||
| 11 | Pressure hose assy | 1 | 11721741843 | $68.56 | Shop at ECS Tuning | |||||
| 12 | Hi-lo screw | 4,9X40 | 1 | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 15 | Rubber Mounting | 2 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 16 | Expanding nut | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 17 | Hose | 1 | 11721741847 | $17.70 | Shop at ECS Tuning | |||||
| 18 | Pressure hose assy | 1 | 11721704249 | $144.93 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M6X14-Z3-1 | 1 | 07119915100 | $0.60 | Shop at ECS Tuning | ||||
| 20 | Air hose | ZYL.1-6 | 1 | 11721704306 | $8.97 | Shop at ECS Tuning | ||||
| 21 | Air hose | ZYL.7-12 | 1 | 11721704307 | $8.82 | Shop at ECS Tuning | ||||
| 22 | Hose clamp | L32-38 | 7 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 23 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 24 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning |
