Vacuum control - engine for BMW 7 Series E38 735i (1998)

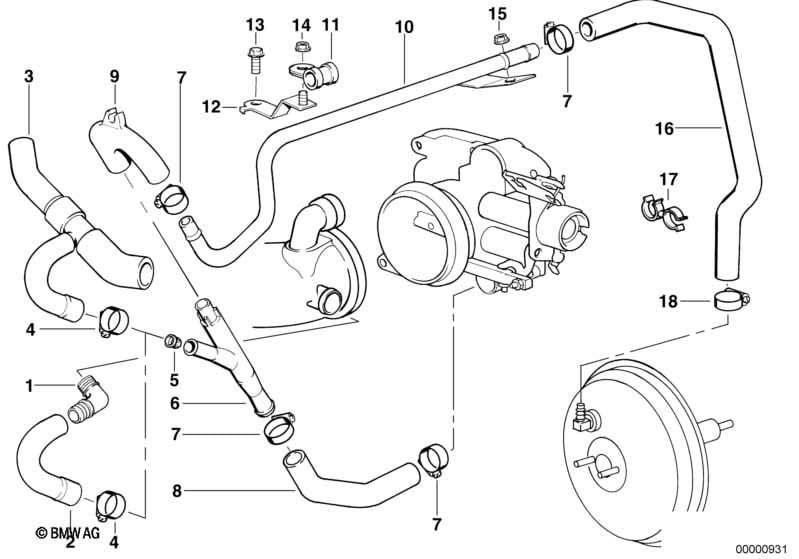

This Vacuum control - engine technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 09/1998 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| 02 | Hose | 1 | 09/1998 | 11611704926 | $6.88 | ENDED | Shop at ECS Tuning | |||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 03 | Hose | 1 | 09/1998 | 11611704934 | $39.02 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | D=20,9-24,1 | 1 | 09/1998 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 05 | Fuel flow reducer | 3,8MM | 1 | 09/1998 | 11611745826 | $3.44 | Shop at ECS Tuning | |||
| 06 | Air pump | 1 | 09/1998 | 11611284269 | $34.29 | +core | Shop at ECS Tuning | |||
| 07 | Hose clamp | D=16,6-20MM | 4 | 09/1998 | 16121180242 | $1.08 | Shop at ECS Tuning | |||
| 08 | Hose | 1 | 09/1998 | 11611704927 | $5.37 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 09/1998 | 11611435265 | $7.17 | Shop at ECS Tuning | ||||
| 10 | Pipe | 1 | 09/1998 | 11611745876 | $28.08 | ENDED | Shop at ECS Tuning | |||
| 11 | Pipe clamp | 1 | 09/1998 | 11611741396 | $2.57 | Shop at ECS Tuning | ||||
| 12 | Bracket | 1 | 09/1998 | 11611704932 | $5.30 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 09/1998 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 14 | Hex nut | M6 | 1 | 09/1998 | 07119922824 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 15 | Hex nut | M6-04-2-ZN | 1 | 09/1998 | 07119921054 | $0.11 | Shop at ECS Tuning | |||
| 16 | Hose | 1 | 09/1998 | 11617560071 | Shop at ECS Tuning | |||||
| 17 | Hose clamp | D=18/20 | 1 | 09/1998 | 17221341603 | $1.87 | Shop at ECS Tuning | |||
| 18 | Hose clamp | 21,3MM | 1 | 09/1998 | 11151726339 | $1.02 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 735i Vacuum control - engine?
- This technical diagram illustrates the Vacuum control - engine within the Engine group for the 7 Series E38 735i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #13541272473).
- Which models use the hardware listed in this Vacuum control - engine?
- The hardware and components featured in the Vacuum control - engine are specific to the 7 Series E38 735i produced during 1998. These technical specifications ensure that parts like the Support (13541272473) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control - engine assembly?
- Each item in the Vacuum control - engine corresponds to the numbered list below the illustration. For the 7 Series E38 735i, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 13541272473 for the Engine section.
