Cylinder Head Attached Parts for BMW 3 Series E36 318ti (1995)

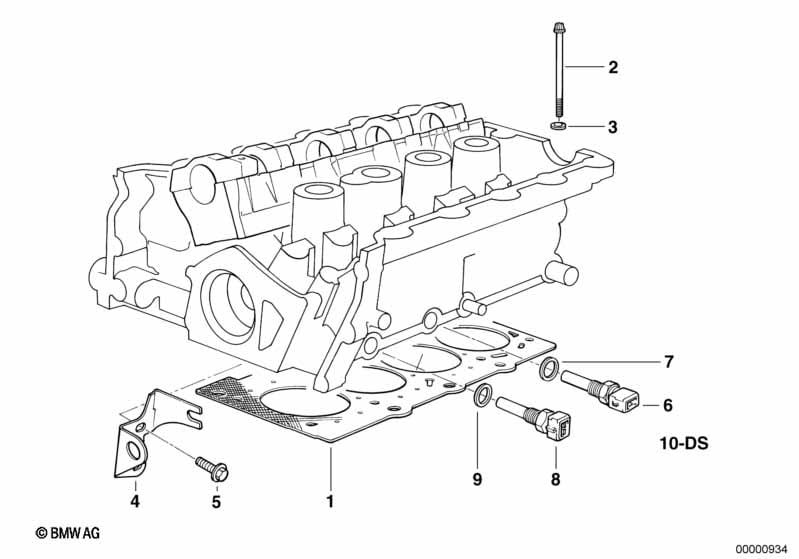

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head gasket | 1,74MM | 1 | 11121721547 | Shop at ECS Tuning | |||||
| 01 | Cylinder Head Gasket Asbestos-Free | 2,04MM(+0,3) | 1 | 11121721550 | $78.25 | Shop at ECS Tuning | ||||
| 01 | Cylinder Head Gasket Asbestos-Free | 2,04MM(+0,3) | 1 | 11121721551 | Shop at ECS Tuning | |||||
| 02 | Set Bolt Cylinder Head | TORX | 1 | 11121721939 | $32.10 | Shop at ECS Tuning | ||||
| 03 | Washer | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 11611721762 | $10.88 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Engine coolant temp sensor | 2-POL | 1 | 12621747281 | $31.72 | ENDED | Shop at ECS Tuning | |||
| 06 | Engine coolant temp sensor | 2-POL | 1 | 12621710535 | $41.29 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 09 | Gasket ring | A12X15,5 AL | 2 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129066434 | $268.67 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
