Crankcase-Ventilation for BMW 3 Series E46 318i (1998)

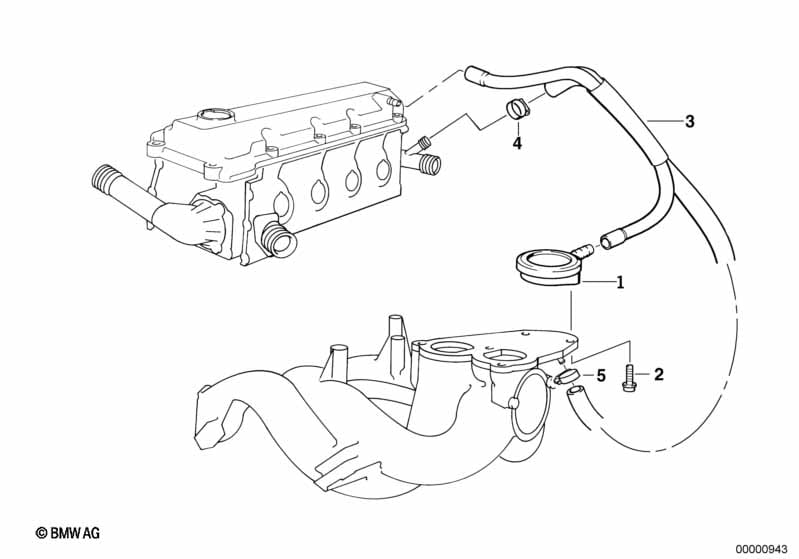

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crank case vent valve | 1 | 11157501567 | $61.05 | Shop at ECS Tuning | |||||
| 02 | Fillister head with washer | M6X20-Z1 10.9 | 2 | 07119900678 | $0.71 | Shop at ECS Tuning | ||||
| 03 | Hose | 1 | 11151743386 | $32.63 | +core | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
