Lubrication system/Oil pump with drive for BMW 3 Series E36 M3 (1995)

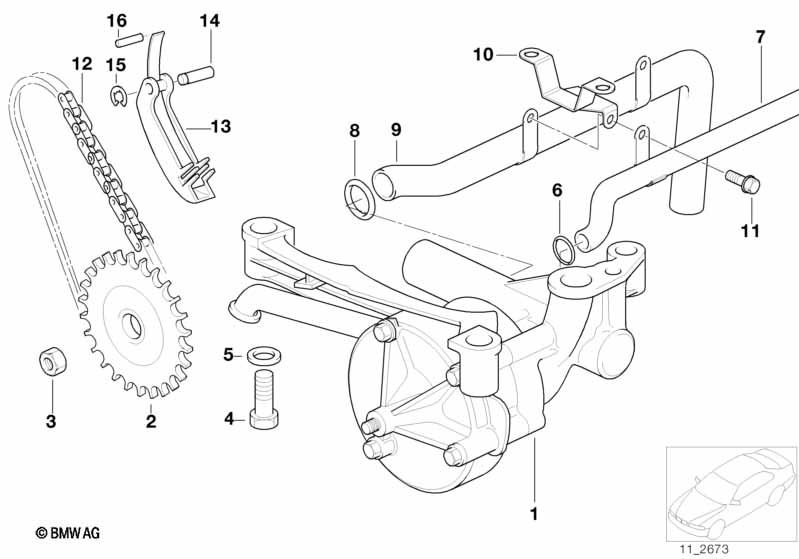

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to INDIVIDUAL SERIES 95 GT INTERNATIONAL |
|||||||||
| 01 | Oil pump | 1 | 11417838123 | $678.00 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Return pipe | 1 | 11411405215 | $30.94 | Shop at ECS Tuning | |||||
| -- | Bracket oil pipe | 1 | 11411405847 | $5.37 | Shop at ECS Tuning | |||||
| -- | Suction pipe | 1 | 11411406405 | $40.87 | Shop at ECS Tuning | |||||
| -- | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Sprocket | 1 | 11411317284 | $30.94 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M10X1-LH | 1 | 07119905857 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M8X45-8.8 | 3 | 07119901033 | $1.19 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | O-ring | 1 | 07119906988 | NoS | Shop at ECS Tuning | |||||
| 07 | Return pipe | 1 | 11411404584 | $30.94 | Shop at ECS Tuning | |||||
| 08 | O-ring | 20X2,5 | 1 | 11411404635 | $2.38 | Shop at ECS Tuning | ||||
| 09 | Suction pipe | 1 | 11411404621 | $42.08 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Bracket oil pipe | 2 | 11411404645 | $6.97 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Chain | 1 | 11411401399 | $40.10 | Shop at ECS Tuning | |||||
| 13 | Chain tensioner | 1 | 11411317650 | $10.22 | Shop at ECS Tuning | |||||
| 14 | Bolt | 1 | 11111706500 | $4.12 | Shop at ECS Tuning | |||||
| 15 | Circlip | 6,0-ZNS3 | 1 | 07119905695 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Dowel pin | 6X32 | 1 | 07119942169 | $0.21 | ENDED | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11417838123).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Oil pump (11417838123) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11417838123 for the Engine section.
