Oil pan-dipstick for BMW 3 Series E36 M3 (1995)

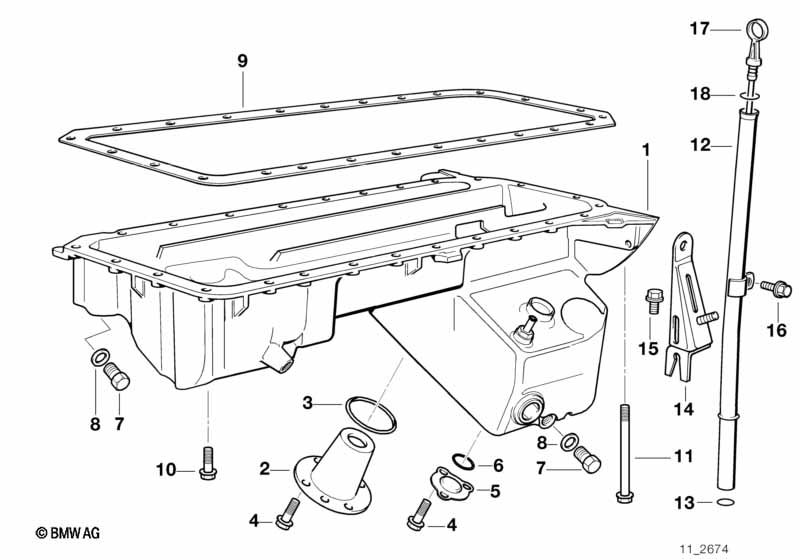

This Oil pan-dipstick technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to INDIVIDUAL SERIES 95 GT INTERNATIONAL |
|||||||||
| 01 | Oil Pan | 1 | 11131404656 | +core | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 11131404657 | $72.86 | Shop at ECS Tuning | |||||
| 03 | O-ring | D=90MM/3MM | 1 | 33111214144 | $2.16 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | 9 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Cover lid | 1 | 11131726357 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 07 | Screw plug | M12X16 | 2 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A12X17-CU | 2 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 09 | Gasket Steel | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X20 | X | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X95-U1 | 2 | 07119905433 | $3.35 | Shop at ECS Tuning | ||||
| 12 | Guide tube | 1 | 11431404746 | $40.73 | Shop at ECS Tuning | |||||
| 13 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 11431405235 | $8.39 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Dipstick | 1 | 11431404836 | $15.30 | Shop at ECS Tuning | |||||
| 18 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
