Upper timing case for BMW 5 Series E39 535i (1997)

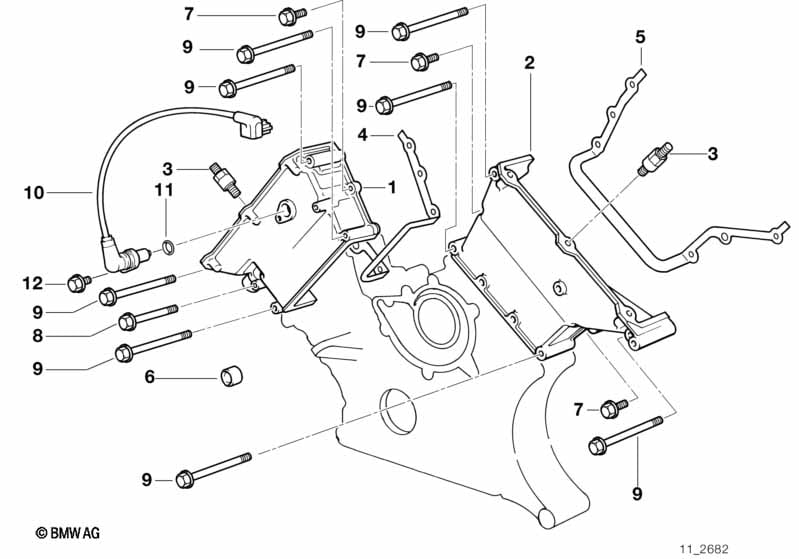

This Upper timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, top | ZYL.1-4 | 1 | 09/1998 | 11141742168 | $96.98 | +core | Shop at ECS Tuning | ||
| 02 | Timing case cover, top | ZYL.5-8 | 1 | 09/1998 | 11141742171 | $96.98 | +core | Shop at ECS Tuning | ||
| 03 | Stud bolt | 6 | 09/1998 | 11121733295 | $2.23 | Shop at ECS Tuning | ||||
| 04 | Profile-gasket | ZYL.1-4 | 1 | 09/1998 | 11141741127 | Shop at ECS Tuning | ||||
| 05 | Profile-gasket | ZYL.5-8 | 1 | 09/1998 | 11141741128 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 8,1X3,5X7,7 | 1 | 09/1998 | 11141736758 | $1.71 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X30-Z1 | 3 | 09/1998 | 11147558183 | $0.62 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X65-Z1 | 1 | 09/1998 | 11141438558 | $0.72 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X80-U1-8.8 | 8 | 09/1998 | 07119906085 | Shop at ECS Tuning | ||||
| 10 | Camshaft position sensor | 1 | 09/1998 | 12141742185 | $116.05 | Shop at ECS Tuning | ||||
| 11 | O-ring | 17X3 | 1 | 09/1998 | 12141748398 | $1.20 | Shop at ECS Tuning | |||
| 12 | ISA screw | M6X12-8.8-ZNNIV | 1 | 09/1998 | 07129905867 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
