What assembly is shown in the BMW 5 Series E39 535iTiming - Timing Chain Lower P?

This technical diagram illustrates the Timing - Timing Chain Lower P within the Engine group for the 5 Series E39 535i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Timing chain (Part #11311741746).

Which models use the hardware listed in this Timing - Timing Chain Lower P?

The hardware and components featured in the Timing - Timing Chain Lower P are specific to the 5 Series E39 535i produced during 1997. These technical specifications ensure that parts like the Timing chain (11311741746) are correctly matched to the vehicle's structural and mechanical requirements.

How do I find specific parts within the Timing - Timing Chain Lower P assembly?

Each item in the Timing - Timing Chain Lower P corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Timing chain by locating its position on the schematic, which then links to the official BMW part number 11311741746 for the Engine section.

Timing - Timing Chain Lower P for BMW 5 Series E39 535i (1997)

Sign In
Sign Out
Account

Donate Go Ad Free

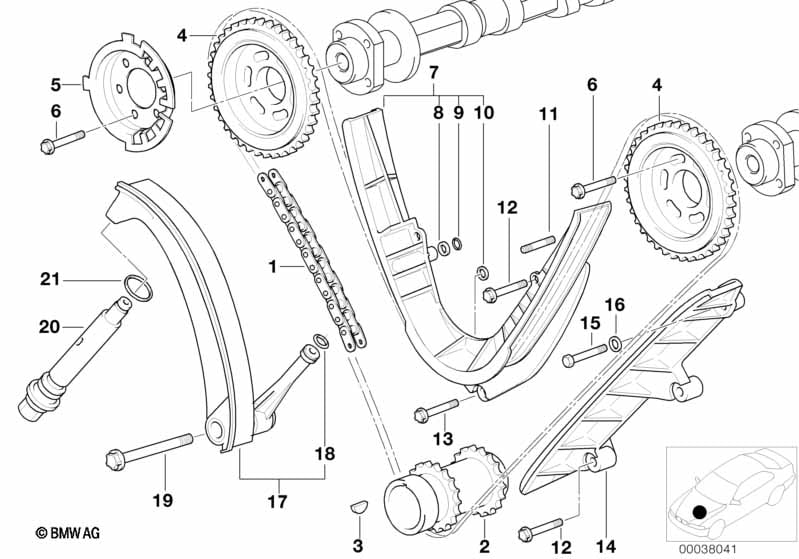

This Timing - Timing Chain Lower P technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.

No.	Description	Supp.	Qty	Up To	Part Number	Price	Notes
01	Timing chain		1	09/1998	11311741746	$130.96		Shop at ECS Tuning
02	Sprocket		1	09/1998	11211742435	$61.18		Shop at ECS Tuning
03	Woodruff key	5X6.5	2	09/1998	07119951480	$0.88		Shop at ECS Tuning
04	Sprocket		2	09/1998	11311742059	$32.22	+core	Shop at ECS Tuning
05	Impulse sending wheel		1	09/1998	11311742139	$11.07		Shop at ECS Tuning
06	Torx bolt	M6X35	X	09/1998	11311742140	$0.65		Shop at ECS Tuning
07	Deflection rail		1	09/1998	11311741777	$114.87		Shop at ECS Tuning
08	Air reducer		1	09/1998	11311742468	$0.35		Shop at ECS Tuning
09	O-ring	11,2X1,8	1	09/1998	07119906363	$0.24		Shop at ECS Tuning
10	Gasket ring	8,1X3,5X7,7	1	09/1998	11141736758	$1.71		Shop at ECS Tuning
11	Grub screw		1	09/1998	11151736960	$1.35		Shop at ECS Tuning
12	Torx bolt	M7X28-8.8	4	09/1998	11311741808	$0.73		Shop at ECS Tuning
13	Torx bolt	M6X25	3	09/1998	11311731952	$0.65		Shop at ECS Tuning
14	Guide rail		1	09/1998	11311704945	$42.62		Shop at ECS Tuning
15	Hex bolt	M6X28-8.8-ZNS	1	09/1998	07119913021	$2.30		Shop at ECS Tuning
16	Washer	A6,4-ZNNIV SI	1	09/1998	07119904202			Shop at ECS Tuning
17	Chain tensioner		1	09/1998	11311741236	$95.44		Shop at ECS Tuning
18	O-ring	6,0X2,5	1	09/1998	11421713597	$1.29		Shop at ECS Tuning
19	Torx bolt	M10X60	1	09/1998	11311741254	$2.12		Shop at ECS Tuning
20	Chain tensioner		1	09/1998	11317531813	$78.27		Shop at ECS Tuning
21	Gasket ring	A22X27-AL	1	09/1998	07119963355	$0.36		Shop at ECS Tuning

Notes

+core = plus core charge (possibility of a return of the old part)
