timing gear timing chain top for BMW 7 Series E38 740iL (1998)

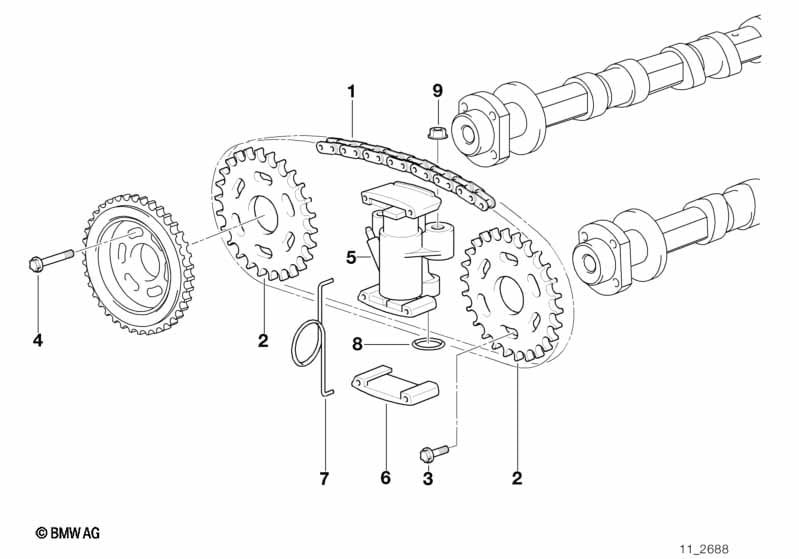

This timing gear timing chain top technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 2 | 09/1998 | 11311747437 | $43.59 | Shop at ECS Tuning | ||||
| 02 | Sprocket | 4 | 09/1998 | 11311741115 | $32.22 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M6X15 | X | 09/1998 | 11311731951 | $0.43 | Shop at ECS Tuning | |||
| 04 | Torx bolt | M6X35 | X | 09/1998 | 11311742140 | $0.65 | Shop at ECS Tuning | |||
| 05 | Chain tensioner | ZYL.1-4 | 1 | 09/1998 | 11311435026 | $127.43 | Shop at ECS Tuning | |||
| 05 | Chain tensioner | ZYL.5-8 | 1 | 09/1998 | 11311435027 | $127.43 | Shop at ECS Tuning | |||
| 06 | Sliding piece | 4 | 09/1998 | 11311742175 | $12.58 | Shop at ECS Tuning | ||||
| 07 | Clip | 2 | 09/1998 | 11311742176 | $4.32 | Shop at ECS Tuning | ||||
| 08 | O-ring | 7,1X1,8 | 2 | 09/1998 | 07119906361 | $0.46 | Shop at ECS Tuning | |||
| 09 | Flange nut | M7 | 4 | 09/1998 | 11617573839 | $0.33 | Shop at ECS Tuning |
