Emission control-air pump for BMW 3 Series E36 328i (1997)

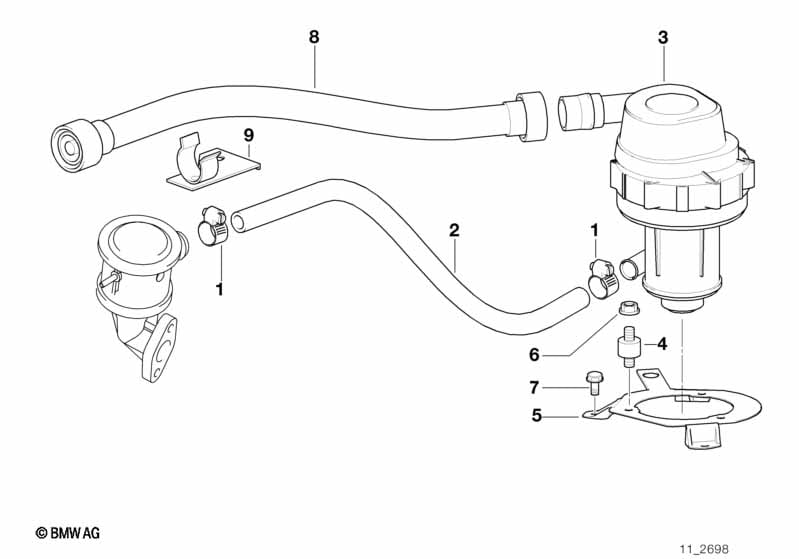

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11721744490 | $399.52 | Shop at ECS Tuning | |||||
| 02 | Pressure hose assy | 1 | 11721744247 | $34.29 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 11721427869 | $10.29 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X18-U1 | 3 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Suction hose | 1 | 11721744246 | $17.70 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 1 | 11721427092 | $4.12 | Shop at ECS Tuning |
