Air pump f vacuum control for BMW 7 Series E38 750iL (2001)

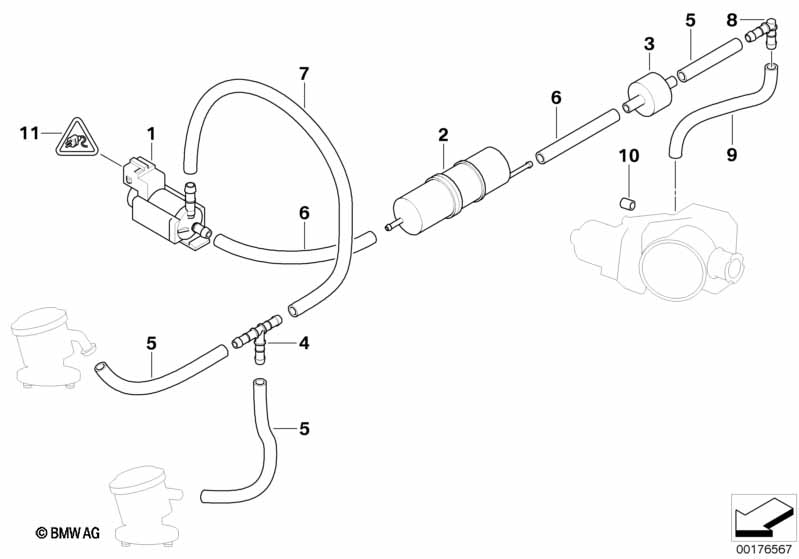

This Air pump f vacuum control technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.valve | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 02 | Container | 1 | 11611312762 | $7.60 | Shop at ECS Tuning | |||||
| 03 | non-return valve | 1 | 11611312737 | $17.70 | Shop at ECS Tuning | |||||
| 04 | T-Connector | 1 | 11721439973 | $1.07 | Shop at ECS Tuning | |||||
| 05 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 06 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 07 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 09/1997 | 22116759728 | $0.79 | Shop at ECS Tuning | ||||
| 09 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 10 | Cap | D=3,5MM | 2 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 11 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Protection cap | 2 POL. | 1 | 12521732694 | $2.10 | Shop at ECS Tuning | ||||
