Cooling System Water Hoses for BMW 5 Series E39 528i (1998)

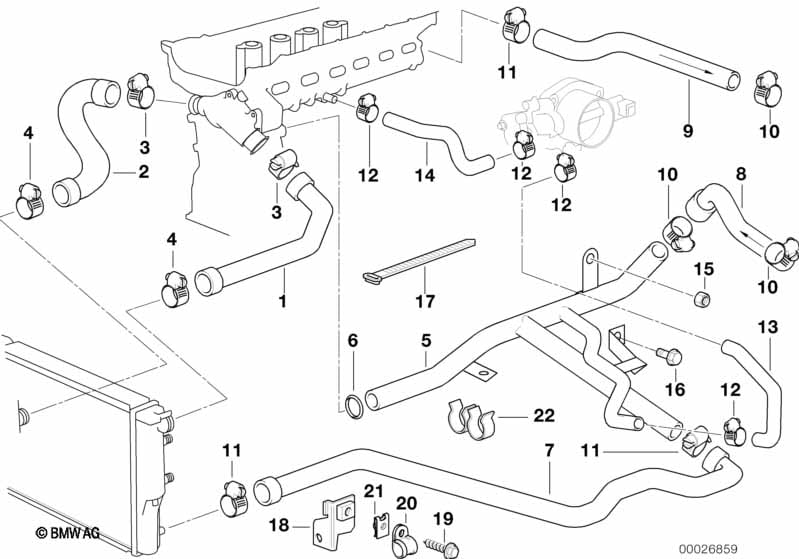

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 09/1998 | 11531740474 | $22.64 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Water hose | 1 | 09/1998 | 11531740832 | $22.64 | +core | Shop at ECS Tuning | |||
| 02 | Water hose | 1 | 09/1998 | 11531740481 | $30.20 | +core | Shop at ECS Tuning | |||
| 03 | Hose clamp | L42-52 | 2 | 09/1998 | 11531708296 | $2.60 | Shop at ECS Tuning | |||
| 04 | Hose clamp | L42-52 | 2 | 09/1998 | 11531708296 | $2.60 | Shop at ECS Tuning | |||
| 05 | Heater return pipe | 1 | 09/1998 | 11531433059 | $107.50 | Shop at ECS Tuning | ||||
| 06 | O-ring | 18,2X3 | 2 | 09/1998 | 11531703848 | $1.25 | Shop at ECS Tuning | |||
| 07 | Return hose | 1 | 09/1998 | 11531744053 | $10.76 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 07 | Return hose | 1 | 09/1998 | 11531744054 | $17.66 | Shop at ECS Tuning | ||||
| 08 | Hose f radiator and engine return | 1 | 09/1998 | 64218367930 | $7.43 | Shop at ECS Tuning | ||||
| 09 | Hose f engine inlet and addit.water pump | 1 | 09/1998 | 64218391003 | $17.00 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L28-33 | 1 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 10 | Hose clamp | L16-30 | 1 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 11 | Hose clamp | L28-33 | 3 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 12 | Hose clamp | L15-18 | 4 | 09/1998 | 11151727509 | $1.02 | Shop at ECS Tuning | |||
| 13 | Hose | 1 | 09/1998 | 13541703945 | $7.73 | Shop at ECS Tuning | ||||
| 14 | Hose | 1 | 09/1998 | 13541703865 | $14.87 | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 09/1998 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 17 | Cable strap with bracket | Ø=7,7 / L=200 | 2 | 09/1998 | 61136924664 | $0.55 | Shop at ECS Tuning | |||
| 19 | Hex head screw | ST6,3X22-C-Z1 | 1 | 09/1998 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning | ||
| 20 | Clamp | D=28/6,4 | 1 | 09/1998 | 11531267334 | $1.61 | Shop at ECS Tuning | |||
| 21 | Body nut | ST6,3-4 ZNS3 | 1 | 09/1998 | 07147144276 | $0.47 | Shop at ECS Tuning | |||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 22 | Hose clamp | D=18/D=25 | 1 | 09/1998 | 12511309471 | $1.50 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
